About this item:

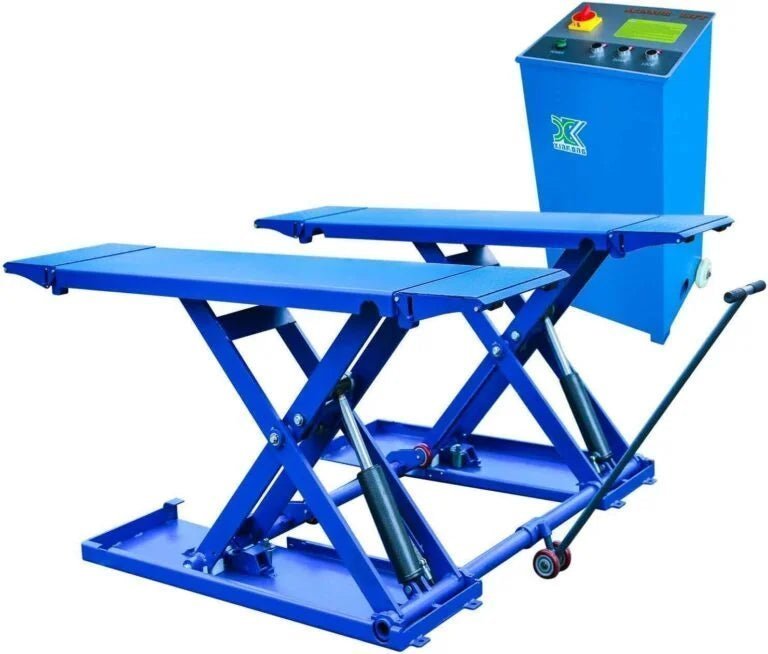

Easy loading drive-on style scissors lift. Double scissors design with four synchronized cylinders for a low profile and a full 70″ lifting height. with Max Electricity 220V:30A. bar Inject 15 litters of wearable hydraulic oil into the oil tank. Continuous Working Pressure 210. Air ..

• When connecting the motor refer to the enclosed diagrams, and the motor direction is clockwise.

Main technical parameter:

• Motor Type: Y90L
• Max. Power: 2.2kw
• Max. Voltage: AC 400 or 220V ±5%
• Max Electricity: 400V:5A / 220V:10A
• Max Frequency : 50/60Hz
• Poles : 4 Speed .1450 r.p.m./min.
• Building Shape: B14
• Insulation Class: F
• Pump Type: P4.3
• Model: Gear Pump
• Max. Flux: 4.3cc/r
• Joint Type: Joint Overfull Valve
• Capacity: 3500kg Max.
• Lifting Height: 1024 mm
• Min. Height: 110 mm
• Overall Length: 2026 mm
• Overall Width : 1860 mm
• Lifting Time: ≤35s
• Lowering Time: ≤25s
• Power Supply: AC 400V or 220V±5% 50/60Hz
• Power : 2.2kw Hydraulic Oil 12L wearable hydraulic oil Working Temperature 5-40℃
• Working Humidity: 30-95%
• Noise Level: < 76db
• Installation Altitude Height: above sea level≤1000M
• Storage Temperature: -25℃~55℃
• Continuous Working Pressure: 210
• bar Intermittent Working Pressure: 150~300
• bar Inject: 15 litters of wearable hydraulic oil into the oil tank
