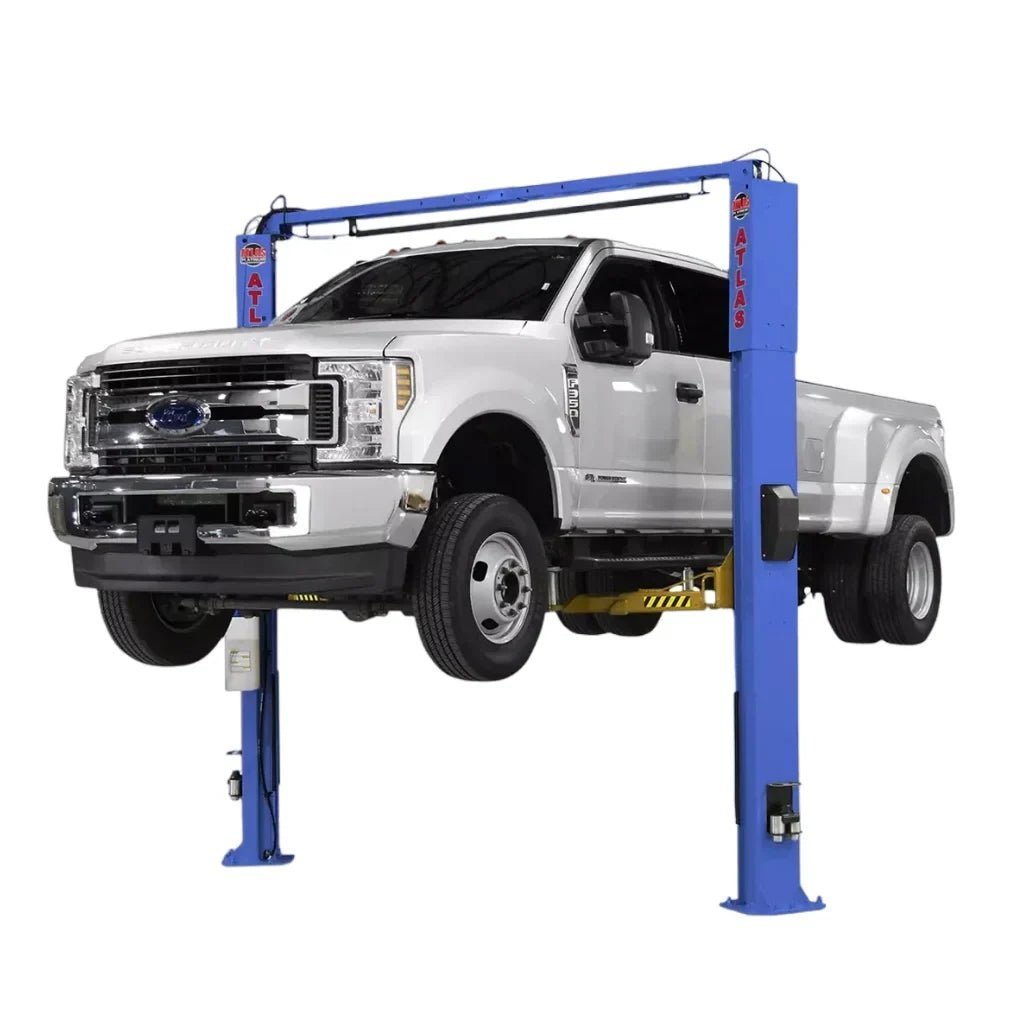

Atlas OHX10000X 10,000 lb Extra Tall 2-Post Lift - Image 1
Click to enlarge
My Store
Offer Banner

Atlas OHX10000X 10,000 lb Extra Tall 2-Post Lift

(4 customer reviews)

$783.00

HALLOWEEN SPECIAL
GET 5% OFF

Enjoy 5% off this order with the code below.

Apply your code at checkout
🚚 Estimated Delivery: 21 Oct – 26 Oct
Secure Checkout
  • 🚚 Free Shipping on Every Order
  • 📦 Tracking Number Provided
  • ↩️ 15-Day Money Back Guarantee
  • ⭐ Trusted by Thousands of Customers
Add to compare
Add to wishlist
Description
  • 10,000 lb. Capacity
  • Commercial Grade
  • Extra Tall & Extra Wide
  • Overall height: 152″ (12′ 8″)
  • Symmetric arms
  • Automatic Arm Restraints
  • “Padded” Shut-Off Bar
  • Rubber Covers on Carriages
  • Single Point Lock Release
  • Dual Direct-Drive Cylinders
  • Powder Coat Finish
  • Free 12 Piece Truck Adapter Set
  • Mounting Hardware Included
  • Shipping Weight: 1,665 lbs
  • 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Atlas® ATTD-OHX10000X Specifications
Capacity10,000 LB.
Overall Height152″ (12′ 8″)
Overall Floor Width144 3/8″ (12′ 3/8″)
Outside Column to Outside Column136″ (11′ 4″)
Maximum Lift Height (Without Adapters)74 3/4″
Maximum Lift Height (With Adapters)85 3/4″
Minimum Arm Height4 1/2″
Inside Column118 1/4″ (9′ 10 1/4″)
Drive Thru106 7/8″ (8′ 10 7/8″)
Column Size9 1/8″ x 11″
Column Thickness of Steel5mm
Base Of Lift18 1/2″ x 21 1/2″
Motor/Electrical Requirement220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight1,665 LBS.
Adapter Heights4 Each 2″, 3″, 6″
Arm Hole/Adapter Peg Size1.5″
Requires a minimum of 4″ of concrete with a 3000 psi. rating
