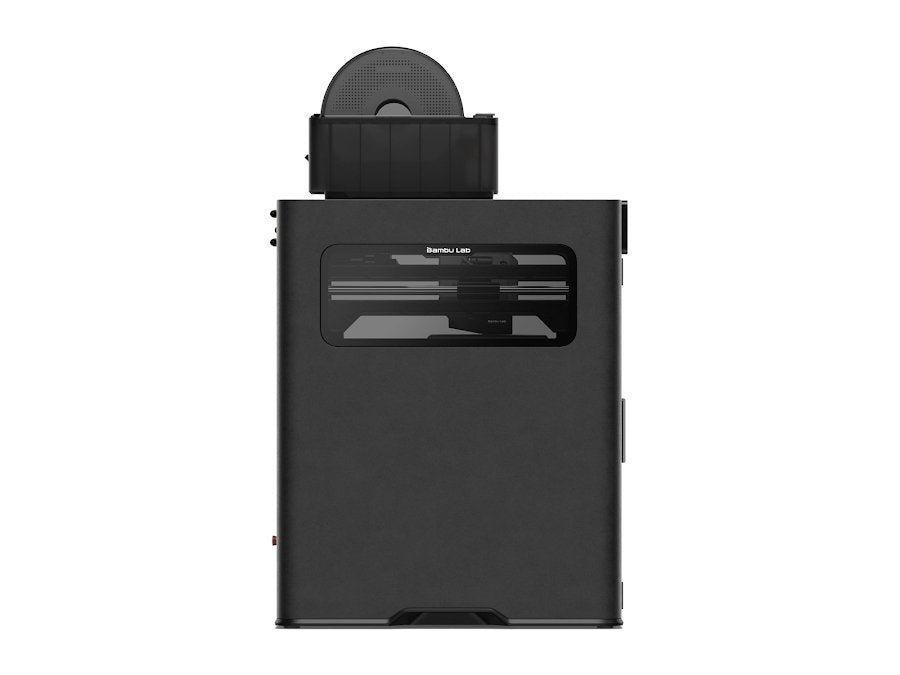

Experience superior production results with the Bambu Lab H2D Pro 3D Printer—engineered for professionals who demand quality, security, and reliability. Unlock advanced high-temperature material versatility, seamless enterprise integration, and increased productivity with outstanding print quality. Featuring a 350°C dual-nozzle system, secure Ethernet and WPA2-Enterprise connectivity, Vision Encoder Calibration, and more, the H2D Pro empowers your organization to achieve exceptional 3D prints with confidence and efficiency.

Key Features of the Bambu Lab H2D Pro 3D Printer:

350°C dual-nozzle system for advanced material versatility

Tungsten carbide nozzle for exceptional durability and lifespan

65°C heated chamber ensures strong, warp-free prints

Secure Ethernet and WPA2-Enterprise Wi-Fi connectivity options

Physical network killswitch meets strict enterprise security standards

Included Vision Encoder delivers ultra-precise 50µm motion accuracy

Adaptive air circulation and HEPA filtration for safer environment operation

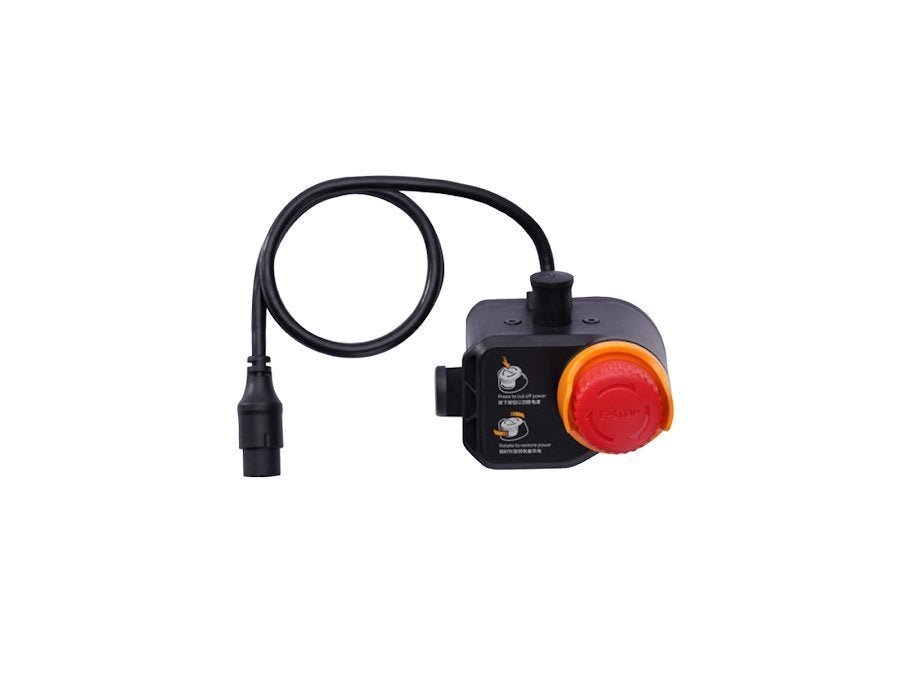

Includes an emergency button to meet industrial safety requirements

SPECIFICATIONS

GENERAL

Technology

Fused Deposition Modeling (FDM)

Motion System

CoreXY

Assembly

Fully-Assembled

Made in

China

MACHINE DIMENSIONS

Outer Dimensions (w/o AMS)*

(L × W × H)

492×514×626mm

(19.4″×20.2″×24.6″)

Net Weight (w/o AMS)**

31kg (68.4lb)

PRINTING PARAMETERS

Build Volume

SINGLE Extrusion

325mm × 320mm × 325mm

(12.79″×12.59″×12.79″)

DUAL Extrusion

300mm × 320 × 325mm

(11.81″×12.59″×12.79″)

Total Volume for Two Nozzles

350mm × 320mm × 325mm

(13.77″×12.59″×12.79″)

Filament Diameter

1.75mm

Extrusion

Extruder Motor

Bambu Lab High-precision Permanent Magnet Synchronous Motor

Extruder Gear

Hardened Steel

Hotend

All-Metal

Nozzle Material

Tungsten Carbide Nozzle

Max. Nozzle Temperature

350°C

Nozzle Size

0.4mm

Max Build Plate Temperature

120°C

Build Surface

Flexible Textured PEI Plate

OPTIONAL

Smooth PEI Plate

Max Toolhead Speed

1000mm/s

Max Toolhead Acceleration

20,000mm/s²

Max Flow Rate

(Standard Flow Hotend)

40mm³/s*

Active Chamber Heating

Supported

Max Chamber Temperature

65°C

Pre-Filter Grade

G3

HEPA Filter Grade

H12

AIR PURIFICATION

Activated Carbon Filter Type

Granulated Coconut Shell

VOC Filtration

Superior

Particulate Matter Filtration

COOLING

Part Cooling Fan

Closed Loop Control

Cooling Fan for Hotend

Main Control Board Fan

Chamber Exhaust Fan

Chamber Heat Circulation Fan

Auxiliary Part Cooling Fan

PRINTER FEATURES

Enclosed

Yes—Plastic & Glass

Frame

Aluminum and Steel

Filament Cutter

Built-In

Build Plate

Magnetic, Flexible

Bed Leveling

Fully-automated

Emergency Button

✓

Swappable Nozzle System

Power Loss Recovery

CAMERA(S)

Live View Camera

Built-in; 1920 × 1080

Nozzle Camera

BirdsEye Camera

Built-in; 3264 × 2448

Toolhead Camera

SENSOR(S)

Door Sensor

Filament Runout Sensor

Filament Tangle Sensor

Filament Odometry

Supported with

AMS

COMPATIBLE MATERIALS

Third-Party Filament

Yes***

PLA, PETG, TPU, PVA, BV OH, ABS, ASA, PC, Nylon / PA, PET, PPS,

PPA, and Carbon/Glass Fiber Reinforced Filament variants

of the previously listed materials

COMMUNICATION

Display

5″ Capacitive Touch Screen

Display Resolution

720 × 1280

Storage

Built-in 8 GB EMMC and USB Port

Control Interface

Touchscreen, mobile App, PC App

Motion Controller

Dual-core Cortex-M4 and Single-core Cortex-M7

Applicator Processor

Quad-core 1.5 GHz ARM A7

Neural Processing Unit

2 TOPS

NETWORK CONTROL

Connectivity

Wi-Fi, Ethernet

Network Kill Switch

Wi-Fi & Ethernet

Wi-Fi Frequency Range

2400 MHz – 2483.5 MHz

Wi-Fi WPA2-Enterprise

EAP-PEAP

EAP-TLS

TAP-TTLS

Wi-Fi Transmitter Power (EIRP)

≤ 21.5 dBm (FCC)

≤ 20 dBm (CE/SRRC)

Wi-Fi Protocol

IEEE 802.11 b/g/n

Ethernet Socket

RJ45

Ethernet Speed

100 Mbps / Full Duplex

Removable Network Module

Yes

802.1X Network Access Control

SOFTWARE

Slicing Software

Bambu Studio

Supports third-party slicers which export standard

G-code (i.e. Super Slicer, PrusaSlicer and Cura, etc.),

but certain advanced features may not be supported.

Compatible OS

Windows, MacOS

Supported File Format(s)

STL, 3MF

POWER REQUIREMENTS

Input Voltage

100 – 120 VAC / 200 – 240 VAC, 50/60 Hz

Max Power**

1320 W@110 V

2200 W@220 V

Average Power

1050 W@110 V

1050 W@220 V
