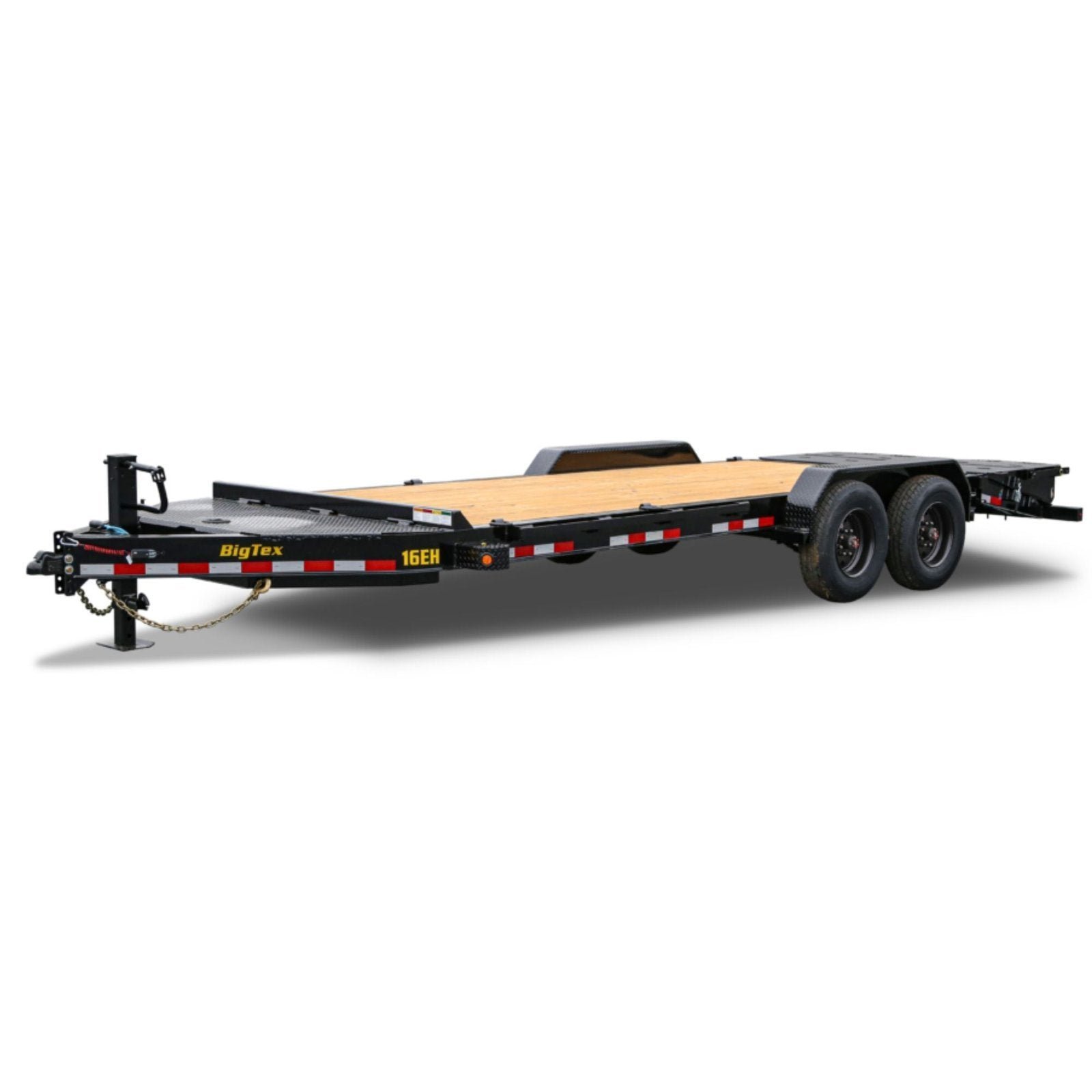

Part of the all-new X-Series, the 16EH Equipment Trailer from Big Tex Trailers is engineered for professionals who demand durability and innovation. The 16EH features APEX Fortified Lumber for superior deck durability and a Mega-Sized Toolbox for added storage capacity. It’s enhanced with a Full-Length Rub Rail, D-Rings, and Stake Pockets, providing multiple secure tie-down options for a variety of cargo. The 16EH revolutionizes loading and unloading with its optional Self-Stabilizing Mega Ramps, offering unparalleled flexibility for all your hauling needs.

Standard Feature

Available Options

Axles

2 – 8,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps

Brakes

Forward Self-Adjusting Electric Brakes on All Hubs

Suspension

Multi-Leaf Slipper Spring w/ Equalizer

Coupler

Adjustable 2-5/16” Demco EZ Latch

Adjustable Pintle in Channel in Lieu of Coupler

Adjustable 2-5/16″ Demco EZ Latch Gooseneck Coupler

Safety Chains

3/8″ Grade 70 w/ Safety Latch Hook (2 ea)

Jack

12,000# Drop-Leg Jack (Side Wind)

Frame

8″ I-Beam

Cross-Members

3″ Channel on 16″ Centers

Front Stop Rail

3/16″ Fabricated Front Stop Rail

Floor

APEX Fortified Lumber

Fenders

9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable)

Ramps

5′ Tall, 16″ Stand Up Rams (Spring Assisted)

36″ Wide Mega Ramps (D3 Models Only)

Super-Wide Ramps (60″ Tall x 30″ Wide) w/ Blackwood Pro-Filled Dovetail

Dovetail

40” Cleated Dovetail

Stake Pockets

Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

7-Way RV

Lights

L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring

Sealed, Modular Cold-Weather Wiring Harness

Tires

ST215/75 R-17.5 Load Range H

Bolt Pattern

8-Lug

Spare Mount

Front Spare Tire Mount

Spare Tire

Not Included

Spare Tire (ST215/75 R-17.5 LR-H)

Paint Color

Black

Red

Grey

White

Desert Tan

Jet Blue

Slime Green

Implement Green

Equipment Orange

Medium Yellow

Rubrail

Rub Rail Along Both Sides

Tie-Downs

(6) 5/8″ D-Rings

Break-Away Kit

Complete Breakaway System w/ Zip Breakaway Cable

Storage

Lockable Toolbox Between Risers on Gooseneck Model Mega-Sized Integrated Tongue Box with Lockable Lid (Bumper Pull Only)

Steps & Handles

Convenient Side-Step to Access Deck

Model

16EH-18D3A

16EH-20D3A

16EH-22D3A

16EH-24D3A

16EHG-20D3A

16EHG-22D3A

16EHG-24D3A

Pull Type

Bumperpull

Gooseneck

GVWR

17500 lbs

20000 lbs

GAWR (Ea. Axle)

8000 lbs

Empty Weight

3190 lbs

3320 lbs

3480 lbs

3650 lbs

3700 lbs

3860 lbs

4040 lbs

Cargo Capacity

14310 lbs

14180 lbs

14020 lbs

13850 lbs

16300 lbs

16140 lbs

15960 lbs

Bed Length

18′

20′

22′

24′

Bed Width

83″
