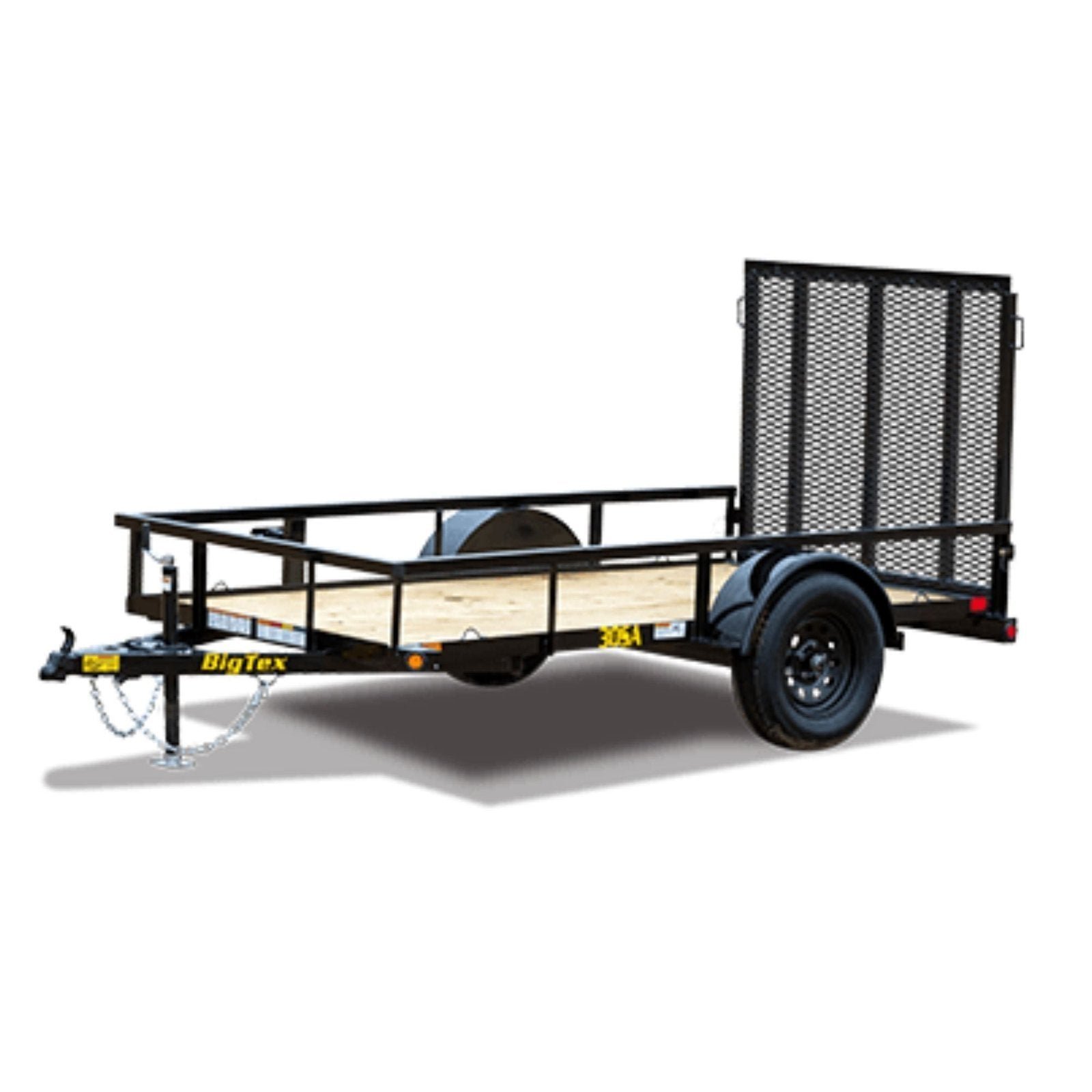

Big Tex Single Axle Utility Trailer | 30SA
$936.69
Enjoy 5% off this order with the code below.
- 🚚 Free Shipping on Every Order
- 📦 Tracking Number Provided
- ↩️ 15-Day Money Back Guarantee
- ⭐ Trusted by Thousands of Customers
89 in stock
Hauling around the house and garden, unsure about what tasks you’re going to face in the day ahead? Then haul with confidence with the 30SA Single Axle Utility Trailer. Equipped with an angled frame and professional-grade finish to easily haul large ATVs and zero-turn mowers, the 30SA offers a reliable and cost-effective way to be prepared for whatever hauling needs come your way.
STANDARD FEATURE
AVAILABLE OPTIONS
Axles
3,500# Premium, Cambered Axle with Quick-Lubricating Hubs
Brakes
Brake Flanges for Easy Brake Addition
Electric Brakes w/ Complete Break-Away Kit
Suspension
Multi-Leaf Slipper Spring
Coupler
2″ A-Frame
2″ Forged Coupler
Safety Chains
1/4″ Grd. 30 w/ Safety Latch Hook (2 ea)
Jack
2,000# Top Wind, Set-Back Jack with Removable Sand Foot
2,000# Fold-Up Jack
Frame
3″ x 2″ x 3/16″ Angle
Cross-Members
3” x 2” x 3/16” Angle
Floor
Treated Pine Floor
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
Fenders
9″ x 32″ Rolled Formed w/ Back
Ramps
4′ Tall Rear Ramp Gate w/ Coil Spring Assist
5′ Tall Rear Ramp Gate w/ Coil Spring Assist
Stake Pockets
Additional Stake Pockets (Each)
Trailer Plug
4-Way Flat w/ Loom
Lights
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring
Grommet-Mounted Lifetime L.E.D. Lighting
Tires
ST205/75 R-15 Load Range C
Bolt Pattern
5 Bolt
Spare Mount
Side Spare Tire Mount
Spare Tire
Spare Tire (ST205/75R-15 LR-C)
Paint Type
Professional Finish w/ Primer Standard
Paint Color
Black
Red
Grey
White
Desert Tan
Jet Blue
Slime Green
Implement Green
Equipment Orange
Medium Yellow
Tie-Downs
(4) Tie Down Loops Inside Bed
Additional Tie Loops
Sides
17″ Tall Open sides with 2” Angle uprights and 2″ x 2″ Square Tubing Top Rail
2′ High Sides (Open, Total Height with Top Rail)
3’ High Sides (Open, total height with Top Rail)
4’ High Sides (Open, total height with Top Rail)
Car Hauler Style (No Side Rails)
Enclose Sides w/ Expanded Metal (Per Square Foot)
Enclose Sides w/ Sheet Metal (Per Square Foot)
MODEL
30SA-8
PULL TYPE
Bumperpull
GVWR
2995 lbs
GAWR (EA. AXLE)
3500 lbs
EMPTY WEIGHT
663 lbs
CARGO CAPACITY
2332 lbs
BED LENGTH
8′
BED WIDTH
60″
A
97-1/2″
B
61″
C
36-1/2”
TONGUE LENGTH
36-1/8″
30SA-10
723 lbs
2272 lbs
10′
121-1/2”
73”
48-1/2”
