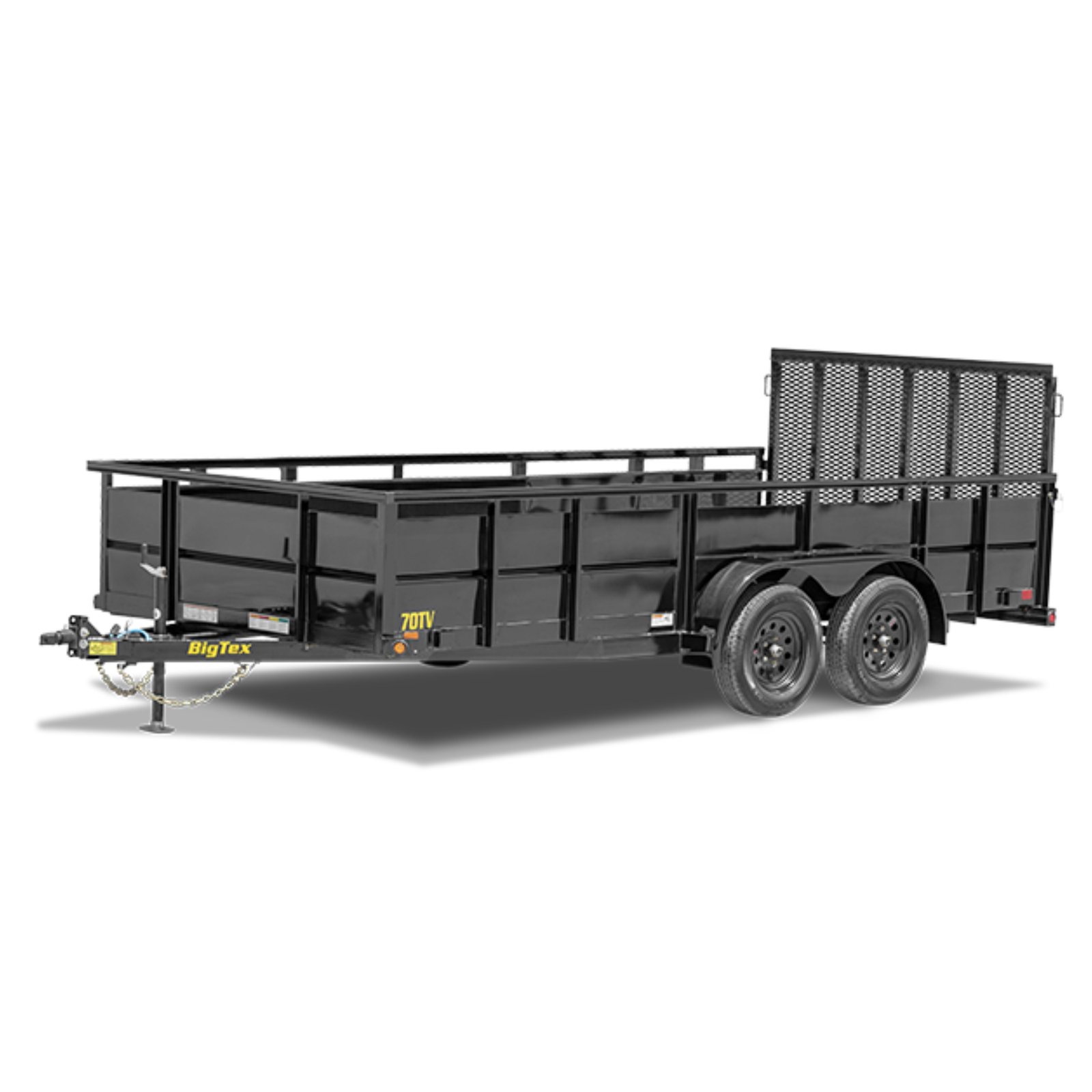

Get more cargo space with the extra wide 70TV Tandem Axle Vanguard Trailer. An 83’’ wide trailer that’s equipped with higher, v-crimped steel sides for maximum strength, durability, and protection, the 70TV features reliable steel-belted radial tires that keep you on the road safely. It’s up to the task to haul lawn and garden equipment for heavy-duty landscaping jobs with its 7,000 lbs G.V.W.R. Built for the long haul, this rugged trailer is the perfect fit for professional landscapers and homeowners who put in long hours to look after their lawn and garden.

Standard Feature

Available Options

Axles

3,500# Premium, Cambered Axle with Quick-Lubricating Hubs

Brakes

Forward Self Adjusting Brakes on Front Axle and Flanges on the Rear Axle

Electric Brakes on 2nd Axle

Suspension

Multi-Leaf Slipper Spring w/ Equalizer

Coupler

2″ Demco EZ- Latch

2-5/16” Forged Coupler

2-5/16” Stamped Coupler

Safety Chains

1/4″ Grd. 30 w/ Safety Latch Hook (2 ea)

Jack

2,000# Top Wind, Set-Back, Sand Foot Jack

8,000# Drop-Leg Jack

2,000# Fold-Up Jack

Frame

4″ x 3″ x 1/4″ Angle

Cross-Members

3” x 2” x 3/16” Angle

Floor

Treated Pine or Douglas Fir

Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)

Fenders

9″ x 72″ 16 Ga. Tear Drop Fender

Ramps

4′ Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist

4′ Tall Rear Ramp Gate w/ Coil Spring Assist

5′ Tall Rear Ramp Gate w/ Coil Spring Assist

Stake Pockets

(4) Stake Pockets on Outside Frame

Additional Stake Pockets (Each)

Trailer Plug

7-Way RV

Lights

L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Tires

ST205/75 R-15 Load Range C

Tire Upgrade (ST225/75R-15 LR-D)

Bolt Pattern

5 Bolt

Spare Mount

Side Spare Tire Mount

Spare Tire

Spare Tire (ST205/75R-15 LR-C)

Spare Tire (ST225/75R-15 LR-D)

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Red

Grey

White

Desert Tan

Jet Blue

Slime Green

Implement Green

Equipment Orange

Medium Yellow

Tie-Downs

(4) Tie Down Loops Inside Bed

Additional Tie Loops

Sides

29-3/8″ Tall Sides w/ 24″ V-Crimped Steel Panels (16 Ga.)

Storage

Bolt-On Landscape Box for (24″ x 24″ x 81-1/2″)

Top Rail

2″ x 2″ Square Tubing

MODEL

70TV-12

PULL TYPE

Bumperpull

GVWR

7000 lbs

GAWR (EA. AXLE)

3500 lbs

EMPTY WEIGHT

1665 lbs

CARGO CAPACITY

5335 lbs

BED LENGTH

12′

BED WIDTH

83″

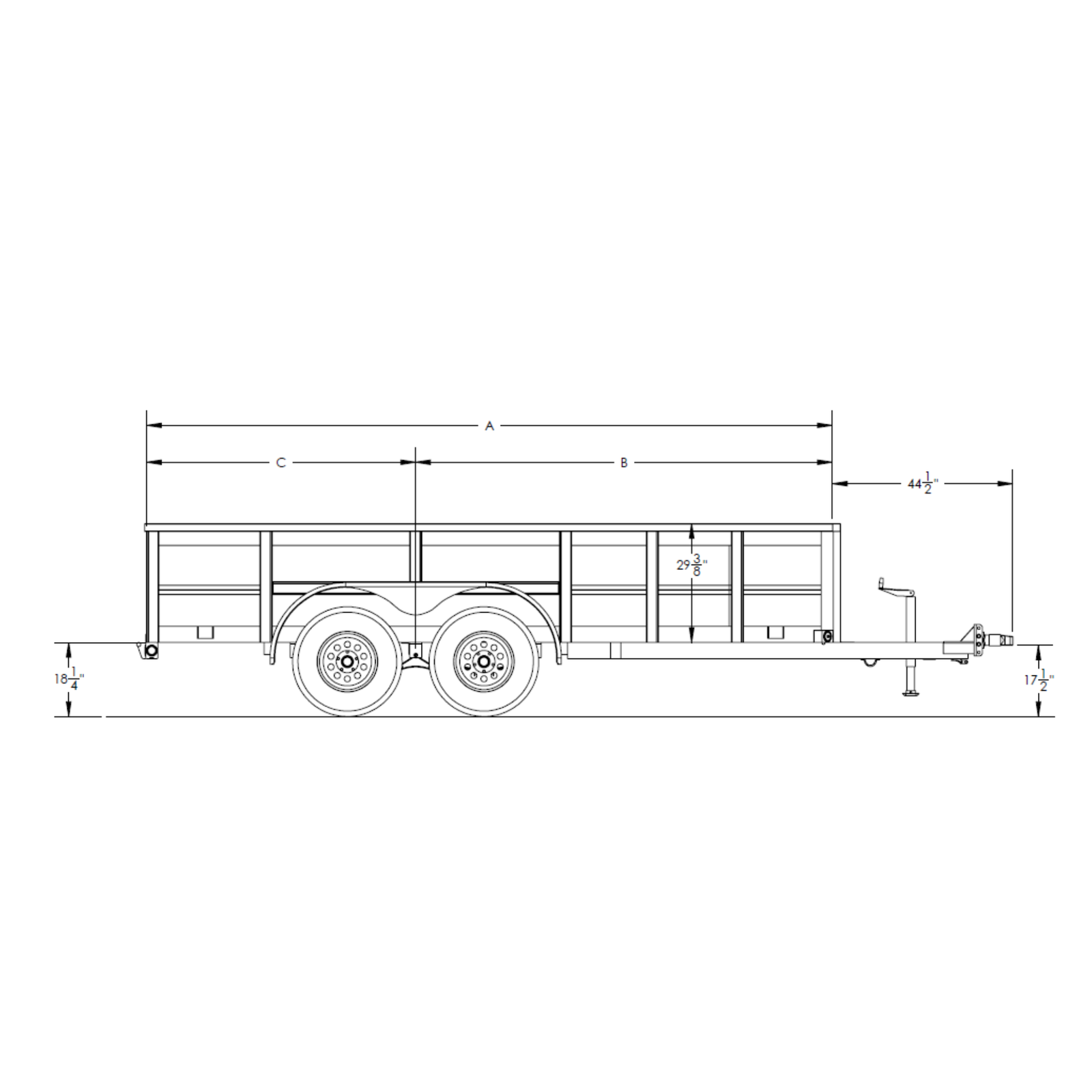

A

145-1/2″

B

85″

C

60-1/2″

TONGUE LENGTH

44-1/2″

70TV-14

1755 lbs

5245 lbs

14′

169-1/2″

103″

66-1/2″

70TV-16

1845 lbs

5155 lbs

16′

193-1/2″

115″

78-1/2″

70TV-18

1935 lbs

5065 lbs

18′

217-1/2″

127″

90-1/2″
