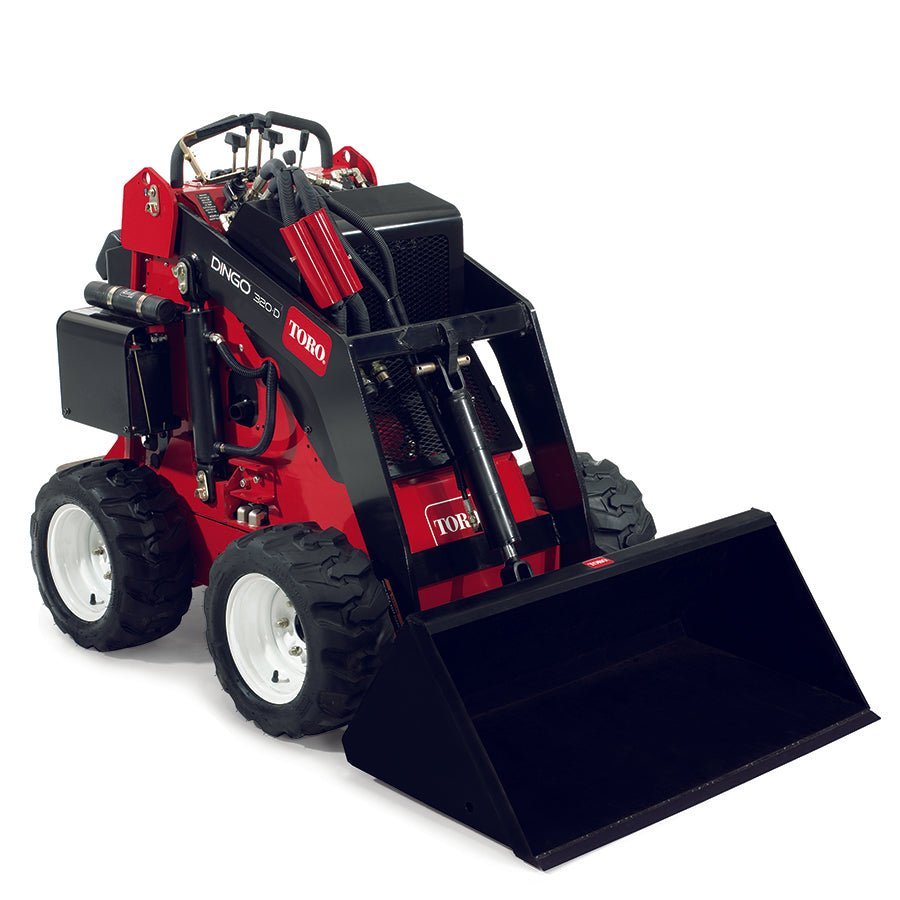

The labor-saving Dingo® 320-D gives you greater capability and effortless maneuverability so you can get more done with less time in a short learning curve-even for new operators.

Air Filter: Two-stage, heavy-duty, remote

Cooling System: Liquid Cooled

Dump Angle: 34 deg

Dump Height: 47 in. / 119.3 cm

Engine Displacement: 719 cc (43.88 cu. in.)

Engine Horsepower: 25 hp (18.6 kW) @ 3,600 rpm

Engine Make: Kubota

Engine Model: D722E3B

Fuel Tank: 4 gal. / 15.1 L

Fuel Type: Diesel

Ground Clearance: 5.8 in. / 14.7 cm

Ground Speed – Forward: Up to 3 mph / 4.8 km/h

Ground Speed – Reverse: Up to 3 mph / 4.8 km/h

Height: 48.7 in. / 123.7 cm

Hinge Pin Height: 66 in. / 167.6 cm

Hydraulic High-Flow Hydraulic Circuit: 10.8 GPM

Hydraulic Low-Flow Hydraulic Circuit: 4 GPM

Hydraulic Pressure: 3,250 PSI

Length: 62 in. / 157.5 cm

Length – With Bucket: 82.2 in. / 208.8 cm

Loader Arms: Radial

Max Operating Height: 91.2 in. / 231.6 cm

Oil Capacity: 3.4 qt / 3.2 L

Rated Operating Capacity*: 524 lbs / 237.6 kg

Reach – Fully Raised: 28 in. / 71.1 cm

Reservoir Capacity: 14.8 gal. / 56 L

Tip Capacity: 1,048 lbs / 475 kg

Track Length: 96.6 in. / 245.3 cm

Track Width: 9.5 in. / 24.1 cm

Weight: 1,722 lbs / 781 kg

Wheelbase: 28 in. / 71.1 cm

Width – With Narrow Tires: 35 in. / 88.9 cm

Width – With Standard Tires: 40.5 in. / 102.8 cm
