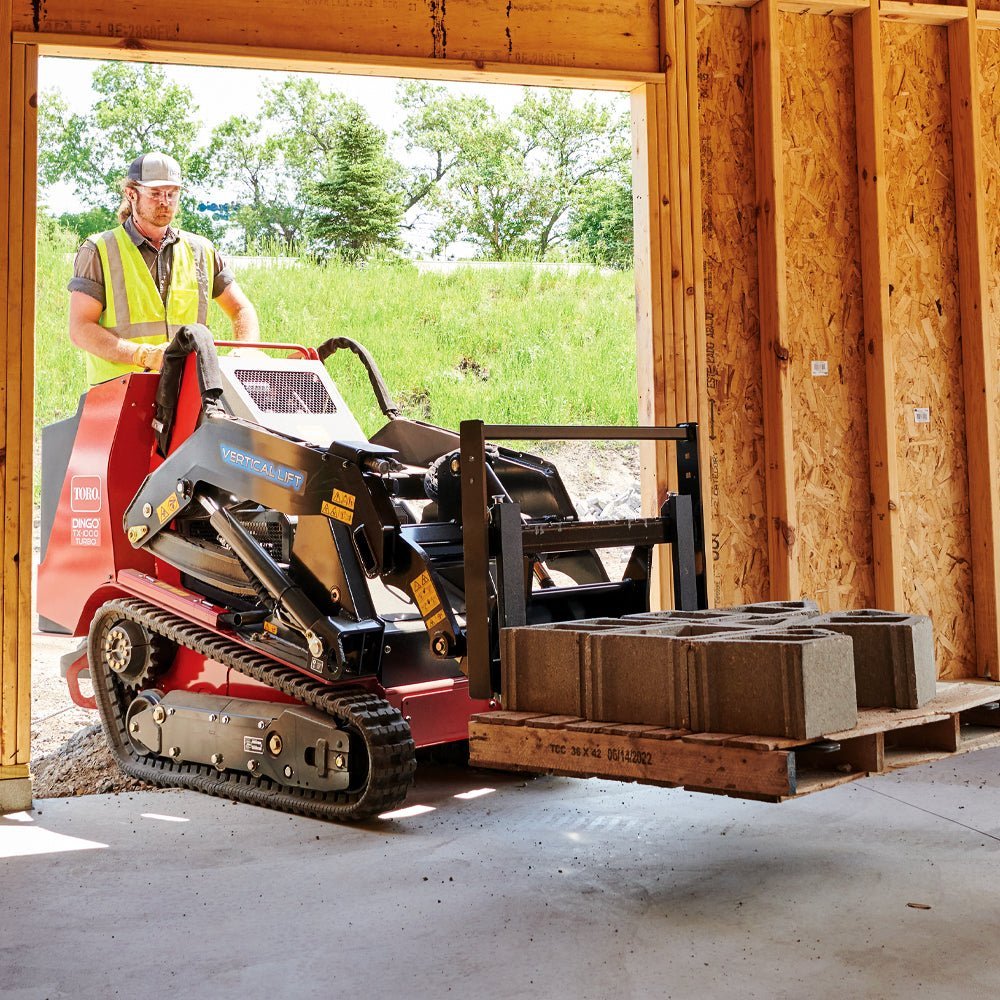

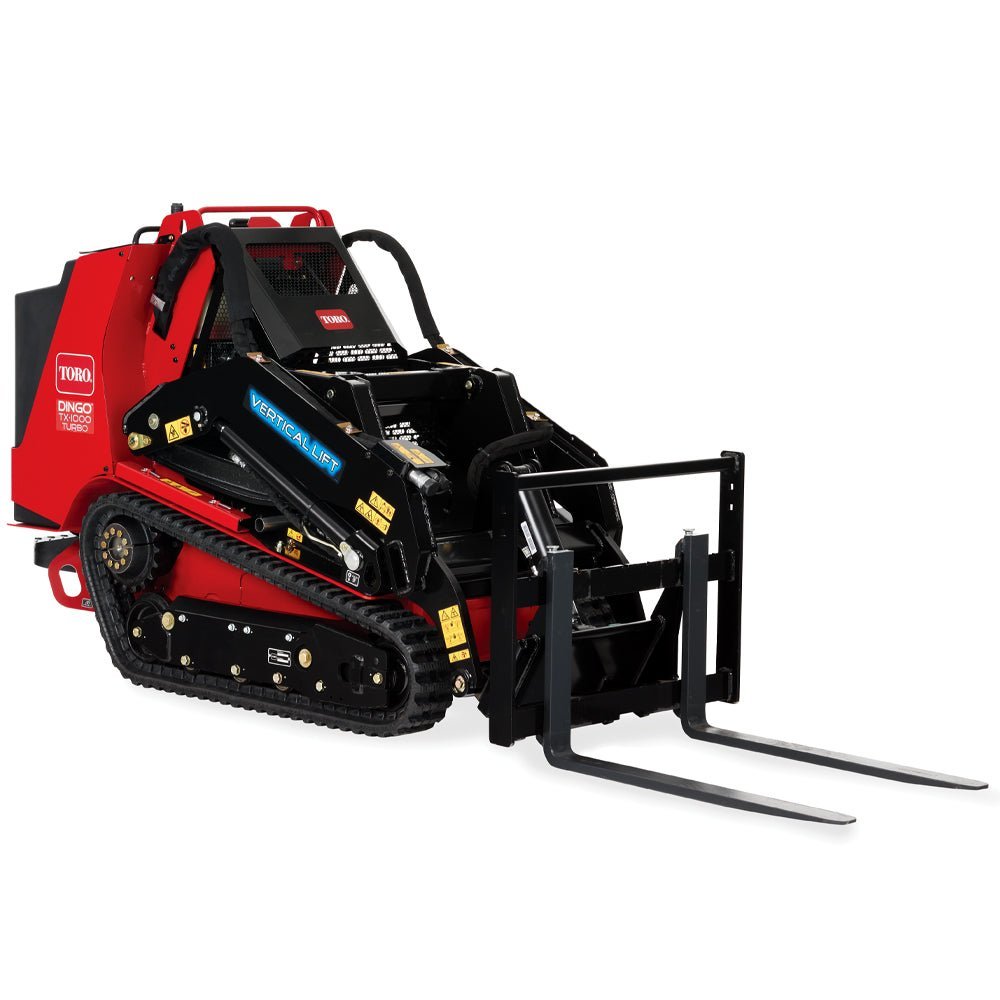

The Dingo TX 1000 TURBO is a turbocharged marvel that not only enhances the unmatched success and superior performance of its predecessor but also incorporates the innovative Smart Power® feature. This feature optimizes engine, auxiliary, and traction torque, providing users with an unparalleled compact utility loader experience. With a width of under 35 inches, the Dingo TX 1000 TURBO narrow track effortlessly navigates through standard 36-inch gates, ensuring versatility and accessibility across a range of job sites.

Air Filter: Remote: Primary and Safety Elements

Cooling System: Combo Crossflow Radiator and Oil Cooler

Dump Angle: 40 deg

Dump Height: 60.3 in. / 153.2 cm

Engine Horsepower: 24.7 hp (18.4 kW)

Engine Make: Yanmar

Engine Model: 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant

Fuel Tank: 10.25 gal. / 38.8 L

Fuel Type: Diesel

Ground Clearance: 5.9 in. / 14.9 cm

Ground Pressure: 6.1 psi

Ground Speed – Forward: Up to 4.1 mph / 6.6 km/h

Ground Speed – Reverse: Up to 4.1 mph / 6.6 km/h

Height: 54.6 in. / 138.7 cm

Height – With Bucket: 54.6 in. / 138.7 cm

Hinge Pin Height: 81 in. / 205.7 cm

Hydraulic Flow – Traction: 12.3 GPM

Hydraulic High Flow: 13.2 GPM

Hydraulic Low Flow: 4.9 GPM

Hydraulic Pressure: 3,000 psi

Length: 83 in. / 210.8 cm

Length – With Bucket: 104 in. / 264.2 cm

Loader Arms: Vertical Lift

Max Operating Height: 106.2 in. / 269.7 cm

Oil Capacity: 3.8 qt / 3.6 L

Rated Operating Capacity*: 1,000 lbs / 454 kg

Reach – Fully Raised: 23.3 in. / 59.2 cm

Reservoir Capacity: 8.6 gal. / 32.5 L

System Capacity: 11.5 gal. / 43.5 L

Track Length: 126.6 in. / 321.5 cm

Track Width: 5.9 in. / 14.9 cm

Tracks: MERT track with “B” style tread

Traction: Dual Hydrostatic Pump

Weight: 2,826 lbs / 1,282 kg

Wheelbase: 39 in. / 99.0 cm

Width: 34.6 in. / 87.8 cm

Width – With Bucket: 42.2 in. / 107.2 cm
