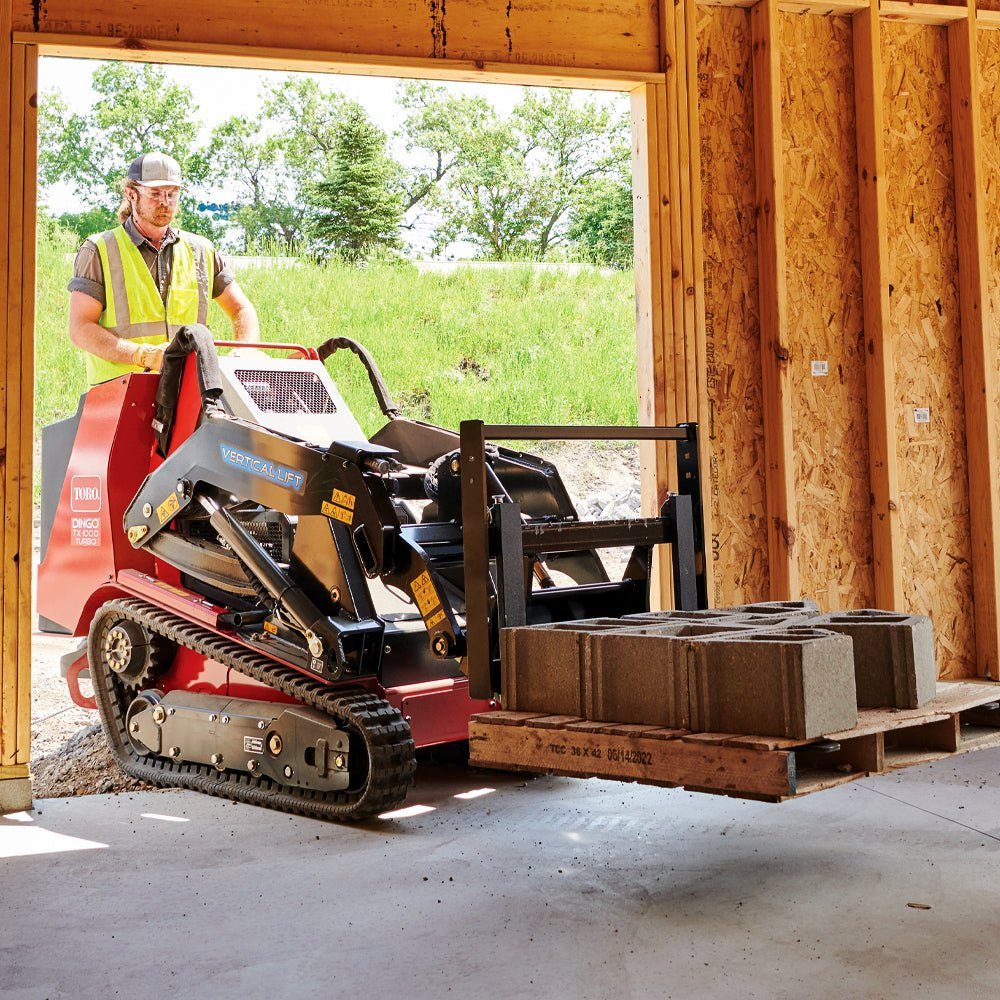

Back in 2015, Toro made waves in the industry with the introduction of the groundbreaking Dingo TX 1000, the first compact utility loader with an impressive 1,000 lbs. rated operating capacity. Now, fast forward to the present, and Toro is set to amaze once more with the launch of the game-changing Dingo TX 1000 TURBO. This turbocharged innovation not only enhances the unmatched success and superior performance of its predecessor but also introduces the state-of-the-art Smart Power® feature. This feature optimizes engine, auxiliary, and traction torque, delivering an unparalleled compact utility loader experience.

Air Filter: Remote: Primary and Safety Elements

Cooling System: Combo Crossflow Radiator and Oil Cooler

Dump Angle: 40 deg

Dump Height: 60.3 in. / 153.2 cm

Engine Horsepower: 24.7 hp (18.4 kW)

Engine Make: Yanmar

Engine Model: 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant

Fuel Tank: 10.25 gal. / 38.8 L

Fuel Type: Diesel

Ground Clearance: 5.9 in. / 14.9 cm

Ground Pressure: 4.1 psi

Ground Speed – Forward: Up to 4.1 mph / 6.6 km/h

Ground Speed – Reverse: Up to 4.1 mph / 6.6 km/h

Height: 54.5 in. / 138.4 cm

Height – With Bucket: 54.5 in. / 138.4 cm

Hinge Pin Height: 81 in. / 205.7 cm

Hydraulic Flow – Traction: 12.3 GPM

Hydraulic High Flow: 13.2 GPM

Hydraulic Low Flow: 4.9 GPM

Hydraulic Pressure: 3,000 psi

Length: 83 in. / 210.8 cm

Length – With Bucket: 104 in. / 264.2 cm

Max Operating Height: 106.2 in. / 269.7 cm

Oil Capacity: 3.8 qt / 3.6 L

Rated Operating Capacity*: 1,000 lbs / 454 kg

Reach – Fully Raised: 23.3 in. / 59.2 cm

Reservoir Capacity: 8.6 gal. / 32.5 L

System Capacity: 11.5 gal. / 43.5 L

Track Width: 9.1 in. / 23.1 cm

Tracks: MERT Track With Turf Friendly Style Tread

Traction: Dual Hydrostatic Pump

Weight: 2,911 lbs / 1,320 kg

Wheelbase: 39 in. / 99.0 cm

Width: 39.9 in. / 101.3 cm

Width – With Bucket: 42.2 in. / 107.2 cm
