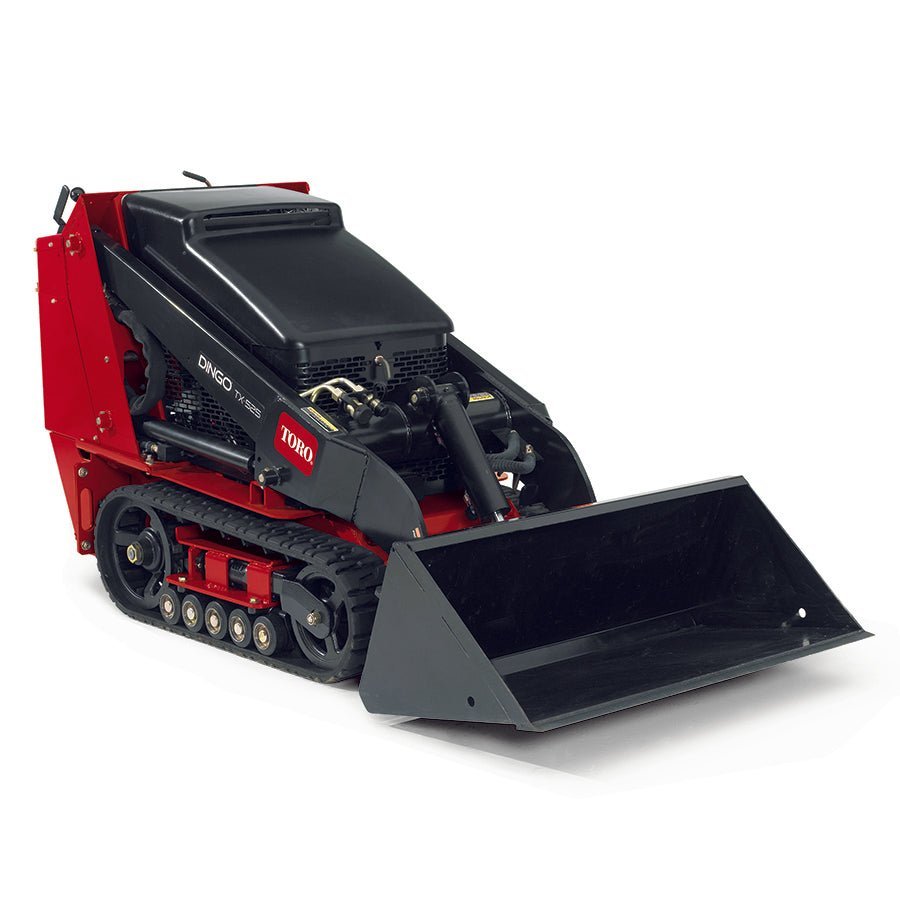

Diesel. Done Right.Our diesel Dingo® TX models deliver what customers want: extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX 525 offers amazing hydraulic power, delivering 13.8 gpm and pumping 24 hp to the attachments, yet has a ground pressure as low as 5.2 psi. And because they’re part of the full-line family, these diesels are compatible with all of Toro’s compact utility loader attachments.

Air Filter: Two-stage, heavy-duty, remote

Cooling System: Liquid Cooled

Dump Angle: 38 deg

Dump Height: 46.1 in. / 117.0 cm

Engine Displacement: 901 cc (55 cu. in.)

Engine Horsepower: 24.8 hp (18.5 kW) @ 3,200 rpm

Engine Make: Kubota

Engine Model: D902E3B

Fuel Tank: 6 gal. / 22.7 L

Fuel Type: Diesel

Ground Clearance: 4.6 in. / 11.56 cm

Ground Pressure: 5.2 psi

Ground Speed – Forward: Up to 4.5 mph / 7.2 km/h

Ground Speed – Reverse: Up to 2.0 mph / 3.2 km/h

Height: 46.1 in. / 117.0 cm

Height – With Bucket: 46.1 in. / 117.0 cm

Hinge Pin Height: 65.8 in. / 167.1 cm

Hydraulic Flow – Auxiliary: 13.8 GPM

Hydraulic Flow – Traction: 16.9 GPM

Hydraulic Pressure: 3,000 psi

Length: 70.7 in. / 179.5 cm

Length – With Bucket: 92 in. / 233.6 cm

Loader Arms: Radial

Max Operating Height: 90.1 in. / 228.8 cm

Oil Capacity: 3.8 qt / 3.6 L

Rated Operating Capacity*: 553 lbs / 250.8 kg

Reach – Fully Raised: 21.8 in. / 55.3 cm

Reservoir Capacity: 10 gal. / 37.8 L

Tip Capacity: 1,580 lbs / 751 kg

Track Length: 96.6 in. / 245.3 cm

Track Width: 5.9 in. / 14.9 cm

Tracks: Sprocket-drive, 10 road wheels per side

Traction: Dual Hydrostatic Pump

Weight: 1,904 lbs / 863.6 kg

Wheelbase: 31.2 in. / 79.2 cm

Width: 33.7 in. / 85.5 cm

Width – With Bucket: 33.7 in. / 85.5 cm
