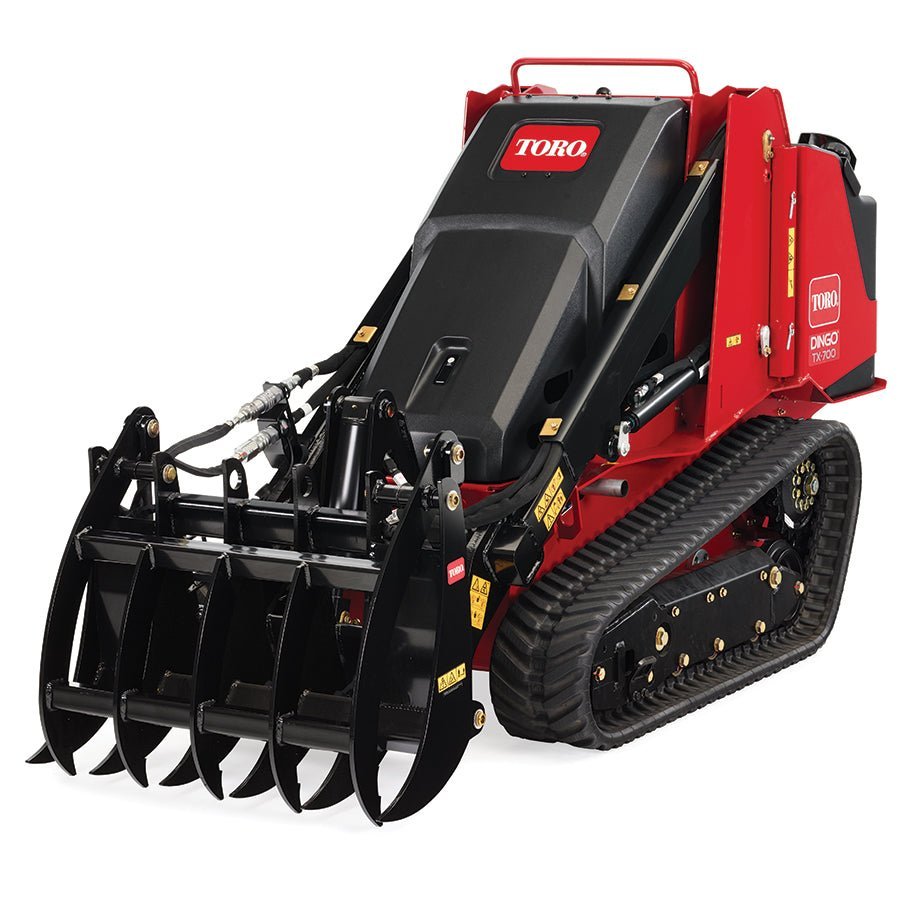

Designed to give you more power in a compact package, the Toro® Dingo® TX 700 expands labor savings beyond just homeowner projects. This no-nonsense workhorse packs 700 lbs of rated operating capacity in a smaller footprint, so it’s ideal for projects where homeowners and contractors are working in confined spaces.

Air Filter: Dual Element

Cooling System: Combo Downflow Radiator and Cooler Oil Cooler

Dump Angle: 42 deg

Dump Height: 52.9 in. / 134.4 cm

Engine Displacement: 1262 cc (77 cu.in.)

Engine Horsepower: 24.7 hp (18 kW) @ 3,000 rpm

Engine Make: Yanmar

Engine Model: 3TNV80F

Fuel Tank: 5.5 gal. / 20.8 L

Fuel Type: Diesel

Ground Clearance: 5.25 in. / 13.3 cm

Ground Pressure: 6.4 psi

Ground Speed – Forward: Up to 4.3 mph / 7.0 km/h

Ground Speed – Reverse: Up to 4 mph / 6.4 km/h

Height: 55.3 in. / 140.5 cm

Height – With Bucket: 55.3 in. / 140.5 cm

Hinge Pin Height: 73.5 in. / 186.7 cm

Hydraulic Flow – Auxiliary: 13.7 GPM

Hydraulic Flow – Traction: 14.5 GPM

Hydraulic Pressure: 3,000 psi

Length: 82 in. / 208.3 cm

Length – With Bucket: 102.8 in. / 261.3 cm

Loader Arms: Radial

Max Operating Height: 97 in. / 246.3 cm

Oil Capacity: 3.6 qt / 3.4 L

Rated Operating Capacity*: 708 lbs / 321.1 kg

Reach – Fully Raised: 31 in. / 78.7 cm

Reservoir Capacity: 10 gal. / 37.8 L

Tip Capacity: 2,023 lbs / 918 kg

Track Length: 9.1 in. / 23.1 cm

Track Width: 126.6 in. / 321.5 cm

Tracks: MERT Track With Turf Friendly Style Tread

Traction: Dual Hydrostatic Pump

Weight: 2,862 lbs / 1,298 kg

Wheelbase: 39 in. / 99.0 cm

Width: 40.2 in. / 102.1 cm

Width – With Bucket: 41.4 in. / 105.2 cm
