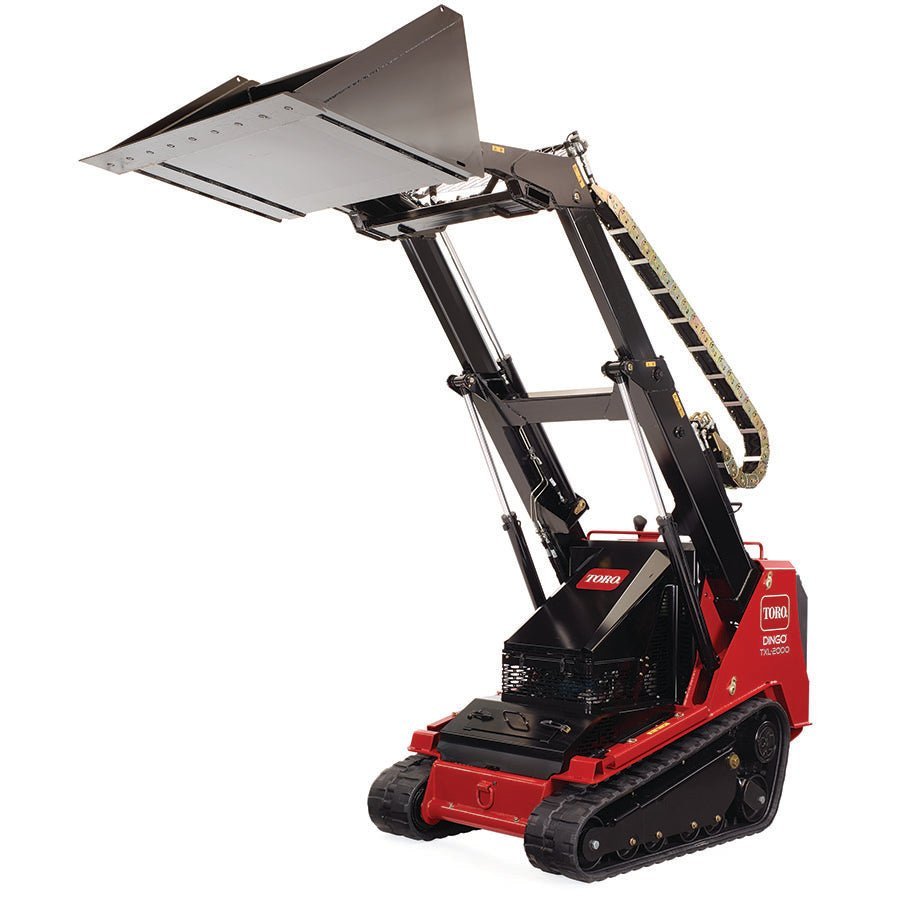

The Dingo TXL 2000 has you covered. No need for separate machines to unload, haul, dig and place material; the Dingo TXL 2000 can do it all. With the benefits of a compact utility loader, mini excavator and compact track loader rolled into one piece of equipment, it’s a smart solution that’s in a category of its own.

Air Filter: Two-stage, heavy-duty, remote

Cooling System: Liquid Cooled

Dump Angle: 46.3 deg

Dump Height: 88.9 in. / 225.8 cm

Engine Horsepower: 49.6 hp (37 kW)

Engine Make: Kubota

Engine Model: D1803

Fuel Tank: 18.3 gal. / 69.3 L

Fuel Type: Diesel

Ground Clearance: 6.3 in. / 16.0 cm

Ground Pressure: 5.3 psi

Ground Speed – Forward: Up to 5.4 mph / 8.6 km/h

Ground Speed – Reverse: Up to 5.4 mph / 8.6 km/h

Height: 67.8 in. / 172.2 cm

Height – With Bucket: 67.8 in. / 172.2 cm

Hinge Pin Height: 123.4 in. / 313.4 cm

Hinge Pin Height – Extended: 123.4 in. / 313.4 cm

Hinge Pin Height – Retracted: 98.6 in. / 250.4 cm

Hydraulic Flow – Auxiliary: 21.4 GPM

Hydraulic Flow – Traction: 21.5 GPM (81.4 LPM)

Hydraulic Pressure Auxiliary: 3,000 PSI

Hydraulic Pressure Traction: 4,350 PSI

Length: 98.8 in. / 250.9 cm

Length – With Bucket: 136.9 in. / 347.7 cm

Max Operating Height: 67.8 in. / 172.2 cm

Oil Capacity: 7.4 qt / 7 L

Rated Operating Capacity – Extended*: 920 lbs / 417 kg

Rated Operating Capacity – Retracted*: 2,000 lbs / 907 kg

Reach – Fully Raised: 45.2 in. / 114.8 cm

Reservoir Capacity: 15.25 gal. / 57.7 L

Tip Capacity: 5,715 lbs / 2,592 kg

Track Length: 162.2 in. / 411.9 cm

Track Width: 11.8 in. / 29.9 cm

Tracks: Sprocket-drive, 6 road wheels per side

Traction: Dual Hydrostatic Pump

Weight: 6,690 lbs / 3,034.5 kg

Wheelbase: 53.7 in. / 136.4 cm

Width: 55 in. / 139.7 cm

Width – With Bucket: 55 in. / 139.7 cm
