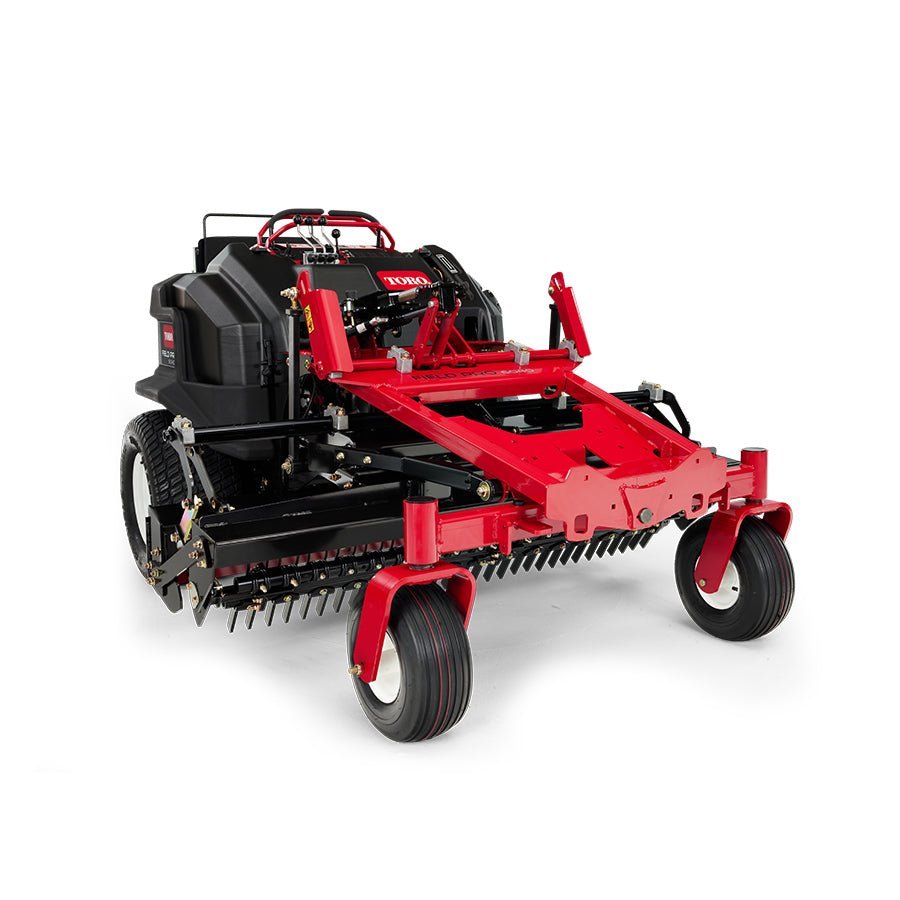

Create ballfields that fans and players love with the Toro Field Pro® 6040. This workhorse features efficient operation with the innovative MultiTool™, ergonomic operator comfort, and incredible versatility in attachment options. The dedicated platform produces a consistent, superior infield playing surface regardless of starting conditions. Precision engineering means precise results. With the Field Pro® 6040, it’s game on.Consistent Results– The rugged chassis, commercial-grade components, and wide range of attachments produce major league playing surfaces for your home field.More Efficient– Four tools can be carried at once, dramatically reducing time spent preparing infields while allowing the operator to scarify, grade and drag smooth in a single pass.Increased Versatility– Dozens of Toro Sand Pro®, Bullseye™ and third-party attachments easily make the Field Pro 6040 the go-to, start-to-finish ball field maintenance machine. Attachment options include: laser level system, drag mats, grooming brooms, tooth rakes and much more.

Air Filter: Premium Air Filtration System

Alternator: 15 amps

Battery: 12V

Brakes – Rear: Hydrostatic

Cab Unit: No

Controls: Hand operated choke, throttle, and hydraulic controls for raising/lowering and actuating the MultiTool Adjustable Carrier. Rear hydraulic lift and lower controls.

Cooling System: Air Cooled

Displacement: 725cc (44.0 cu. In.)

Drivetrain: Gas

Fuel / Power Source: Gasoline

Fuel Capacity: 8.0 gallon (36.3 liter)

Gauges/Instrumentation: Fuel, hour meter

Ground Speed – Forward: 1 – 10 mph (0 – 16 km/h)

Ground Speed – Reverse: 1 – 4.3 mph (0 – 6.9 km/h)

Height: 50.7″ (134 cm)

Hydraulic Oil: Toro PX Hydraulic Oil; 5.0 gallon (18.9 liter) system capacity. Polyethylene reservoir to reduce corrosion. 10 (nominal) micron replaceable cartridge.

Interlock: Parking Brake Interlock

Oil Capacity with Filter: 2.0 quarts (1.9 liter)

Optional Accessories: Field Edger, Box Blade Extensions, Planer Blades, Weight Kit, Draw Bar Hitch

Overall Width: 67.8″ (172 cm)

Parking/Service Brakes: Hand actuated brake lever

Power Train (Engine Description): Kohler® Command PRO® 4-cycle OHV commercial gas engine. 25hp (18.6 kW) at 3600 RPM (SAE J1940). 44.0 cu. in. (725 cc). Oil Capacity: 2.0 quarts (1.9 liter).

Product Length: 103.8″ (264 cm)

Starting: Key Start

Tires – Front: 15″ x 6″ – 6″, 4-ply

Tires – Rear: 24″ x 12″ – 12″, 4-ply

Traction Drive: Independent commercial grade high-torque wheel motors.

Traction Drive (System): 2WD

Vehicle Configuration: Standard

Weight: 1,620 lbs. (735 kg) with MultiTool installed

Wheelbase: 59.6″ (151cm)
