Key Specifications

• Brand: Gravely

• Series: ZT HD Stealth (Limited Edition)

• Engine: Kawasaki FR730V

  • Horsepower: 24 HP

  • Cylinders: V-Twin, 4-cycle, air-cooled OHV

  • Fuel Tank: 5 gallons

• Transmission: Dual Hydro-Gear® ZT-3100® transaxles (commercial-grade)

• Deck:

  • Cutting Width: 60 inches

  • Fabricated 10-gauge steel with reinforced leading edge

  • 3-blade system for superior cut

  • Cutting Height: 1.5” – 5.0” (¼-inch increments, dial-adjustable)

• Speed:

  • Forward: Up to 8 mph

  • Reverse: Up to 4 mph

• Frame & Build:

  • Fully welded steel frame

  • Limited edition Stealth matte black styling

  • LED headlights

• Comfort Features:

  • High-back suspension seat with armrests

  • Adjustable control levers

  • Foot-operated deck lift system

• Tires:

  • Rear: 22-inch drive tires

  • Front: 13-inch caster tires

• Dimensions: Approx. 78″ L × 62″ W × 47″ H

• Weight: ~900 lbs

• Warranty:

  • Residential: 4 years / 500 hours

  • Commercial: 4 years / 750 hours

Description

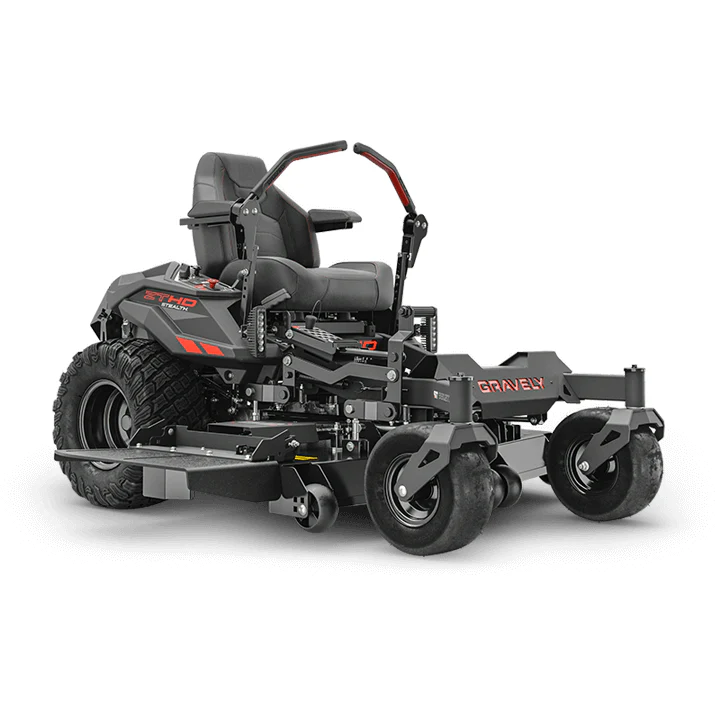

The Gravely ZT HD Stealth with Kawasaki FR730V engine brings together power, performance, and aggressive styling in a premium zero-turn mower. Powered by a 24 HP Kawasaki V-Twin engine and paired with a 60-inch commercial-grade fabricated deck, it’s engineered to handle large lawns and demanding mowing conditions with ease.

Featuring Hydro-Gear ZT-3100 transaxles, a fully welded frame, and Stealth-exclusive blackout styling with LED headlights, this mower offers both durability and bold design. Comfort upgrades like the high-back suspension seat and foot-operated deck lift ensure smooth operation during long mowing sessions.

Ideal for property owners who want commercial-level results and a standout design, the ZT HD Stealth is a mower that delivers precision cutting, reliability, and head-turning looks.
