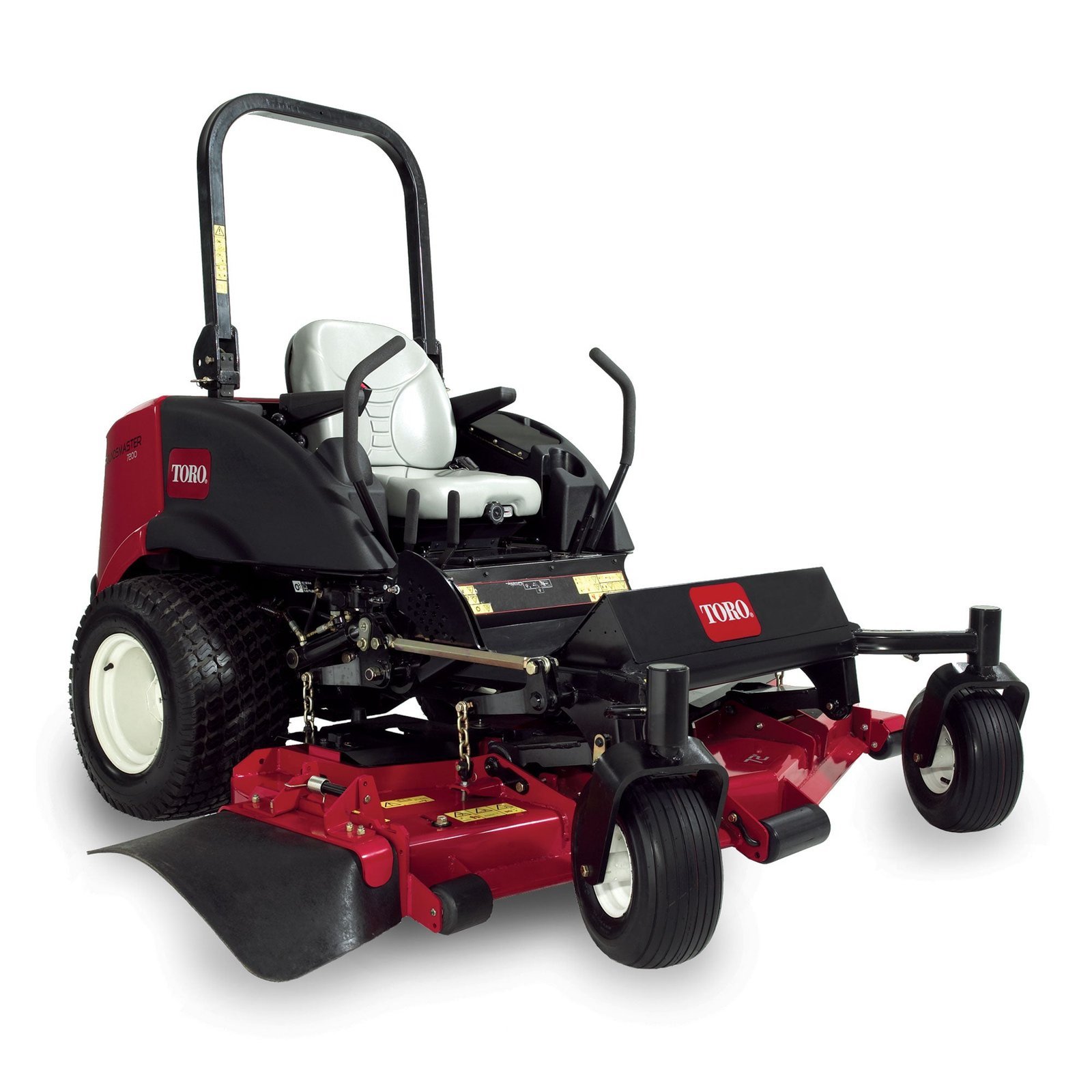

The Groundsmaster® 7200-D/7210-D are zero turn rotary mowers are rugged enough to be called Groundsmasters. A powerful Kubota® 24.8 hp (18.5 kw), 3-cylinder, liquid cooled diesel engine combined with decks that use the industry’s toughest spindle assembly match power and durability for commercial operators.Groundsmaster® 7200 Models can be configured with one of the following decks:Deck Options:60″ side discharge62″ rear discharge deck62″ Guardian Recycler deck72″ side discharge72″ rear discharge72″ Guardian Recycler and Fine Cut Guardian kits

Air Filter: Remote-mounted 5″ Donaldson® air cleaner.

Armrests: Standard

Battery: 12V

Blade Style/Type: Rotary

Cab Unit: N/A

Cooling System Description: Rear-mount, cross-flow radiator with 6.5 fins per 1″ (25 mm), 8 quart (7.6 liter) capacity.

Cup Holder: Standard

Drivetrain: Diesel

Electrical System: 12-volt battery (BCI No. 24) 540CCA, 40 amp internal regulated alternator charging @ 3150 rpm.

Engine Cooling: Liquid Cooled

Fuel / Power Source: Diesel / Biodiesel

Fuel Capacity: 11.5 U.S. gal. (43.5 L)

Fuel Filter: Fuel filter/water separator.

Gauges/Instrumentation: Hour meter, glow indicator, high temp indicator, oil pressure indicator, alternator indicator.

Ground Clearance: Capable of climbing 8″ (20.3 cm) curbs.

Ground Speed – Forward: 0 – 12.5 mph (0 – 20 km/h)

Ground Speed – Reverse: 0 – 8.5 mph (0 – 13.7 km/h)

Hydraulic Fluid Capacity: 3.5 U.S. gal. (13.2 L)

IntelliDash™ Capable: No

Interlocks: Tractor neutral, operator presence (engine shuts down if operator is not in seat and traction sticks are moved to the operation position), parking brake, PTO on, auxiliary hydraulics on, high temp (PTO shuts down but engine still running), over temp (engine shuts down).

Lighting: Optional

Main Frame/Chassis: Structured steel tube and high strength steel plate welded construction, with tie down loops on each corner.

Max Slope Angle: Refer to operator’s manual.

Oil Capacity: 3.9 U.S. qt. (3.7 L)

Operator Area: Built-in cup holder, and personal storage reached from seat. Storage for rain gear, tools, etc.

Optional Accessories: Road Light Kit, 12V Power Port Kit, Slope Sensor Kit, SMV Sign, Jack Stand Kit, Semi-Pneumatic Tire Assembly (front caster wheel), Lug Tire, Spark Arrestor Kit

Parking/Service Brakes: Service: Twin levers with dynamic braking through hydrostatic transmission. Parking: Hand actuated brake lever with two 10.25″ diameter disc brakes mounted on the rear wheel motors.

Power Steering: Yes

Power Train (Engine Description): Kubota® 3-cylinder, liquid-cooled diesel. Power: 24.8 hp (18.5 kW) gross, at rated speed of 3000 rpm. Torque peak: 52.7 ft. lbs. (71.5 Nm) @ 2200 rpm. Displacement: 1123cc. EPA Tier IV Final and Stage V compliant.

PTO Clutch: Hydraulically actuated wet multi-disc clutch.

Safety/Operator Safety: Two-post foldable ROPS standard, optional ROPS certified heat-only cab available.

Seat: Two piece, high back cushion seat with drain hole, deluxe low profile suspension, adjustable for operator weight, seat back angle, seat fore/aft position, armrest height, retractable seat belt.

Starting: Key Start

Steering System Description: Adjustable twin sticks with high performance KYB® hydraulic dampers. Rev/N/Forward, located on sides of operator.

Tires – Front: 24″ x 12″ – 12″, 6-ply, Turf Tire

Tires – Rear: 15″ x 6″ – 6″, 4-ply

Tool Box: Standard

Traction Drive: 2WD

Traction Drive (System): Transmission directly mounted to engine via bell housing, two independent closed-loop circuits. One pump/motor controlling left side forward, neutral, and reverse, and one pump/motor controlling right side forward, neutral, and reverse. Pumps are variable displacement piston type with slippers and full stroke capacity of 18 cc/rev. Independent high-torque, low-speed wheel motors with 310 cc displacement.
