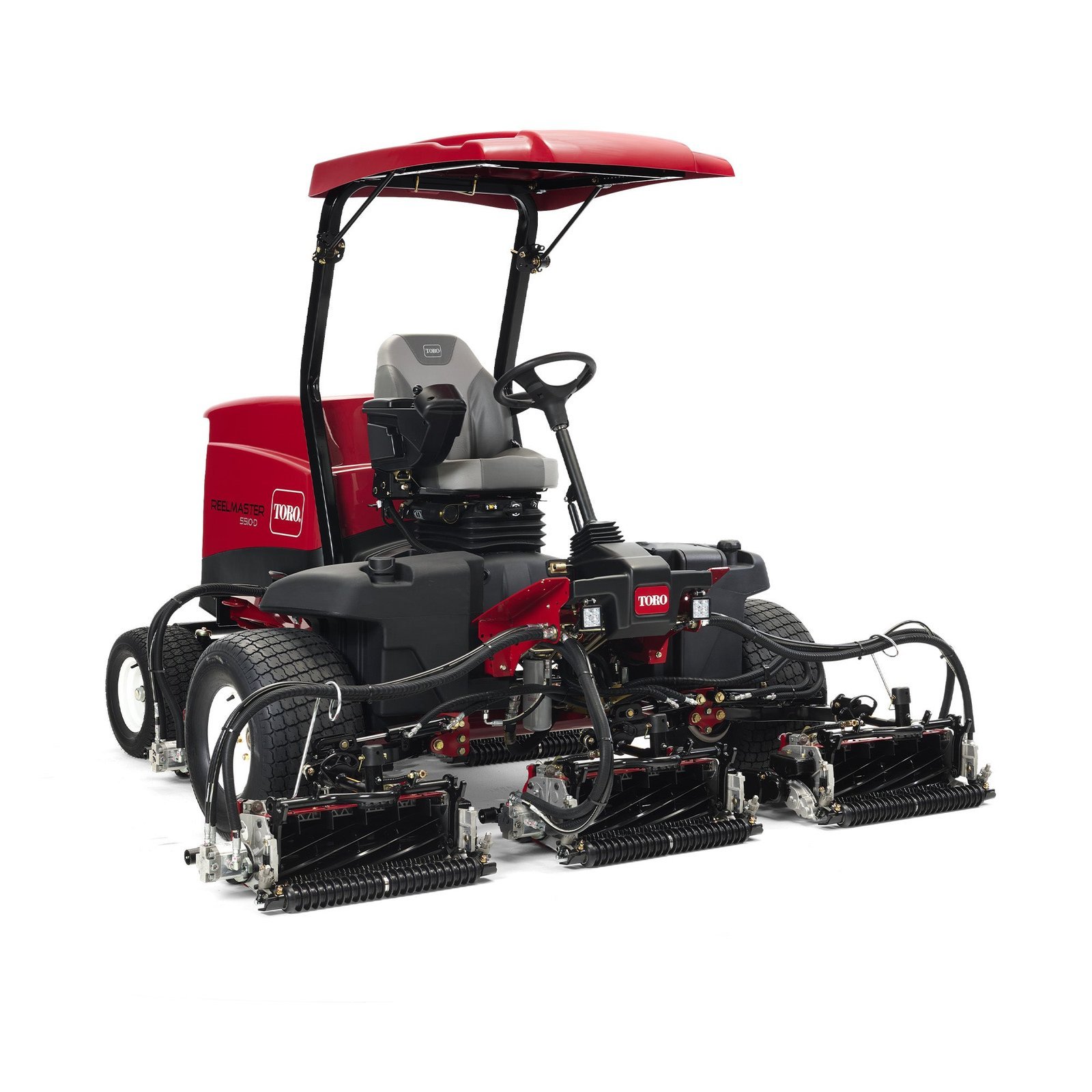

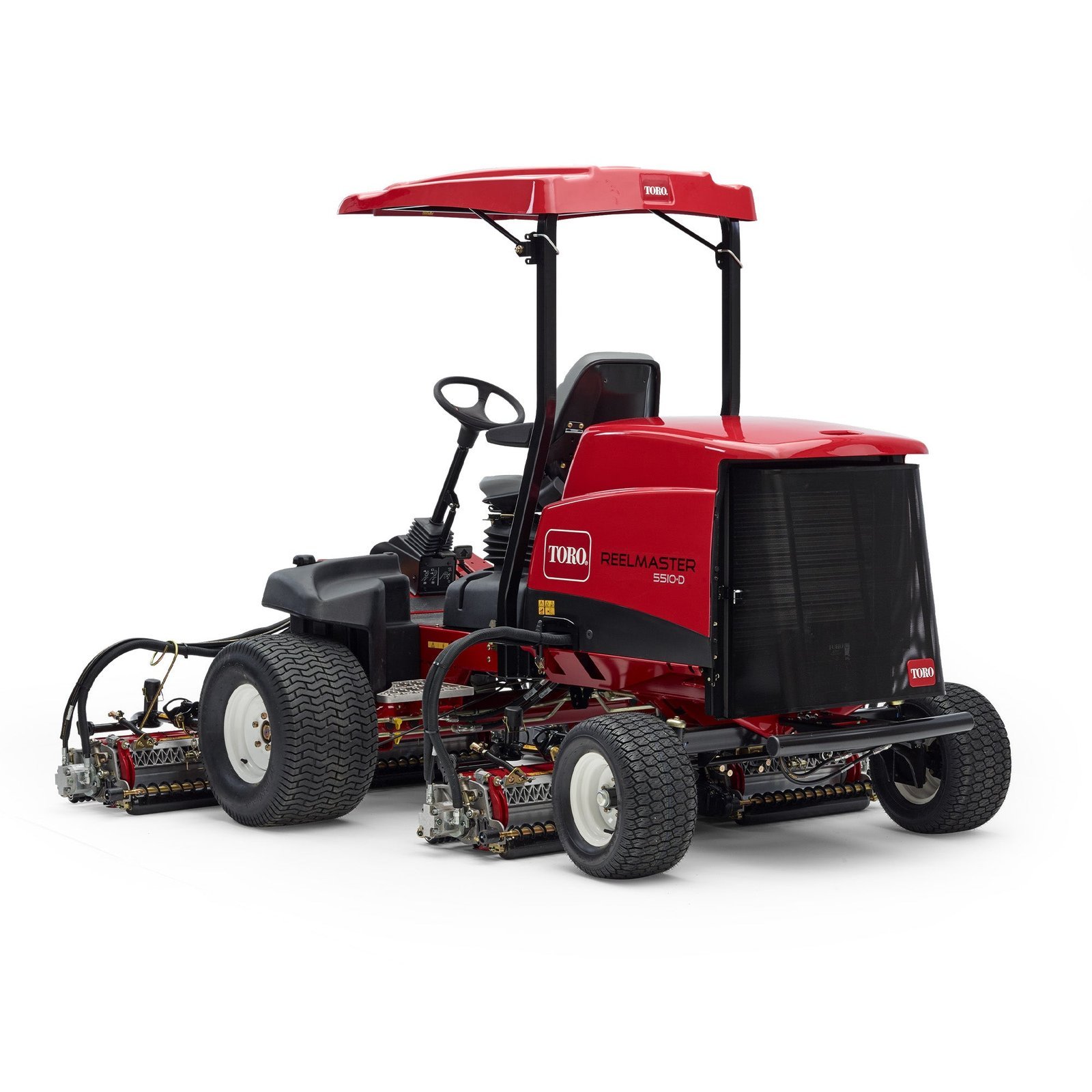

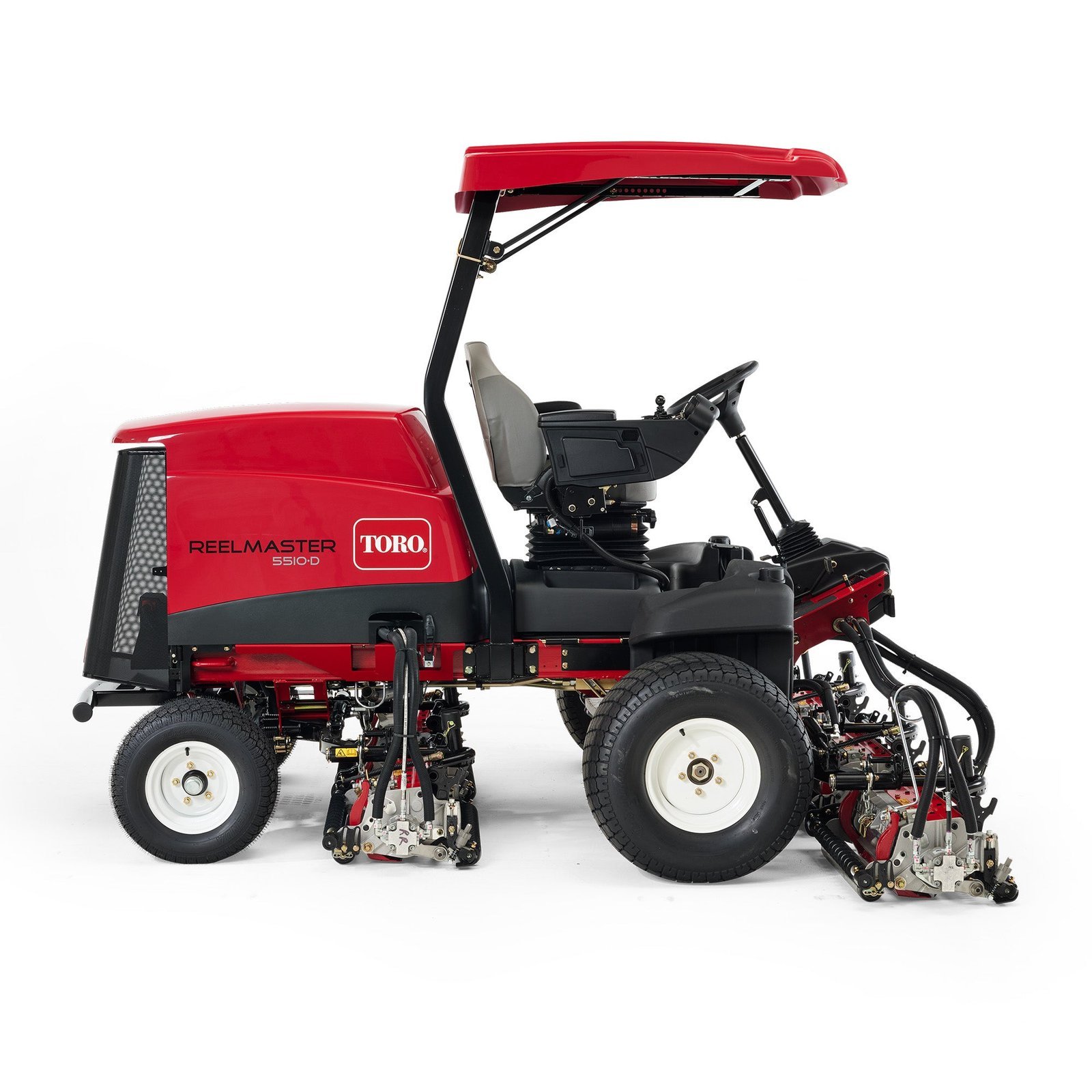

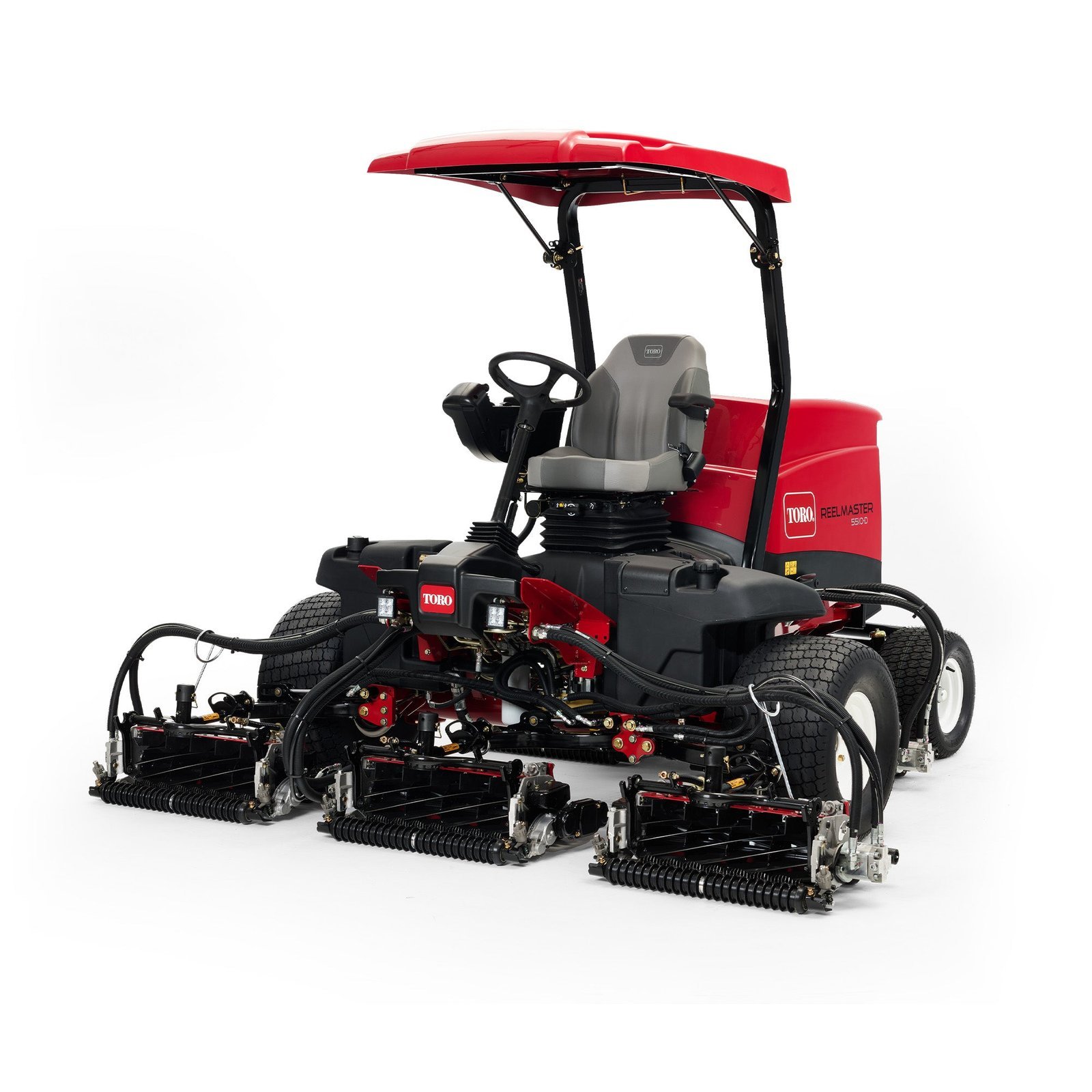

The Reelmaster® 5510 features 7-inch Dual Precision Adjustment (DPA) cutting units to deliver an exceptional quality-of-cut and after-cut appearance. The Reelmaster 5510 includes a powerful Tier 4-compliant diesel engine that can be equipped with our exclusive CrossTrax® all-wheel drive system for exceptional power and control. Excellent operator comfort and outstanding serviceability are already included in each of the industry-leading Reelmaster 5010 Series models.

Air Filter: Heavy-duty three-stage, radial seal air cleaner with restriction indicator.

Armrests: Standard

Battery: 12V

Bedknife Adjustment: Dual Precision Adjustment (DPA), bedknife to reel.

Blade Style/Type: Reel

Blade Type (Description): EdgeSeries™ DPA radial or forward swept reels.

Clip Frequency/Backlapping: Manually controlled, variable reel speed for control of clip frequency. Reel speeds are incrementally adjustable between 200 -1,650 rpm with a backlap speed of 200 rpm. Standard on-board backlapping.

Controls: Single foot-operated traction pedal, foot actuated mow speed limiter, foot actuated service and parking brake. Hand-operated key ignition switch, throttle, isochronous engine speed control, cutting unit raise/lower joystick, cutting unit engage switch, and LED headlight switch, all positioned on right hand pivoting control console.

Cooling System Description: Plate and bar radiator/oil cooler combination, 6.3 fins per inch, 10 quart (9.5 liter) capacity.

Cup Holder: Standard

Cutting Unit Accessories: Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets

Cutting Unit Lift/Lower: Hydraulic – front and rear cutting unit lift/lower are sequenced for uniform starting and ending points.

Cutting Unit Type/Configuration: 5-plex, hydraulically driven, balanced cutting units with adjustable rear weight transfer spring. Cutting units feature quick disconnect for removal/installation and are interchangeable to all positions. Cutting units also feature rear throw capability.

Drivetrain: Diesel

Electrical System: Heavy-duty 12-volt battery, 570 CCA, 55 amp alternator. Electronic control unit is a microprocessor based, solid state control unit with diagnostic capabilities.

Engine Cooling: Liquid Cooled

Fuel / Power Source: Diesel / Biodiesel

Fuel Capacity: 14 U.S. gal. (53 L)

Fuel Filter: Replaceable spin-on fuel filter/water separator.

Gauges/Instrumentation: InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics, indicates fuel level, coolant temp., low oil pressure, alternator, engine hours, engine rpm, voltage, reel speed, backlap speed, glow indicator (diesel), lift/lower indicator.

Ground Speed – Forward: 0 – 10 mph (0 – 16.1 km/h)

Ground Speed – Reverse: 0 – 4 mph (0 – 6.4 km/h)

Height: 63″ (160 cm) seat top, 85″ (217.2 cm) top of ROPS.

Height of Cut Range: 8-Blade: 0.5″ – 2.0″ (13 mm -51 mm)11-Blade: 0.25″ – 0.75″ (6 mm – 19 mm)

Hydraulic Fluid Capacity: 15 U.S. gal. (56.8 L)

Hydraulic Fluid Type: Toro PX™ Extended Life Hydraulic Fluid

IntelliDash™ Capable: Yes

Interlocks: Traction pedal, parking brake, operator presence in seat, and cutting unit engage/disengage safety interlock switches.

Lighting: Standard

Main Frame/Chassis: High strength steel frame with welded construction.

Max Slope Angle: Refer to operator’s manual.

Mowing Speed: 0 – 8 mph (0 – 12.8 km/h)

Number of Blades: 11, 8

Oil Capacity: 5 U.S. qt. (4.7 L)

Oil Cooler Description: Pressurized lubrication system.

Optional Accessories: Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon), 2-post ROPS Extension Kit (with optional windshield, operator cooling fan, LED work lights, rotating amber beacon and safety and security cage)

Overall Width: 116″ (288.3 cm)

Parking/Service Brakes: Individual left and right drum-type front wheel brakes. Brakes may be actuated for service braking via left foot pedal. Integrated foot pedal lock provides parking brake. Dynamic braking through hydrostatic traction drive system.

Power Steering: Yes

Power Train (Engine Description): Yanmar® 3-cylinder, liquid-cooled, diesel engine. 36.8 hp (27.5 kW), 74.4 ft. lbs. (105 Nm) torque, 1.64 liter displacement. Tier IV compliant.

Product Length: 111″ (281.9 cm)

Reel Diameter: 7 in. (17.8cm)

Reel/Cylinder Drive: Hydraulic

Rollers: 3″ (7.6 cm) diameter, deep groove plastic Wiehle front roller. 3″ (7.6 cm) diameter steel rear roller. Other roller configurations optional.

Safety/Operator Safety: 2-post ROPS and retractable seat belts standard.

Seat: Deluxe high back suspension seat with fore, aft, height and weight adjustment.

Starting: Switch

Steering System Description: Rear wheel, power steering with an independent hydraulic pump and circuit.

Tires – Front: 26.5″ x 14″ – 12″, 4-ply, Turf Tire

Tires – Rear: 20″ x 12″ – 10″, 4-ply, Turf Tread

Tool Box: Standard

Traction Drive: Front-Wheel Drive

Traction Drive (System): Front drive wheels powered by a hydrostatic pump with individual wheel motors. All-wheel drive optional with CrossTrax® All-Wheel Drive system, which transfers power from the front wheels to the opposite rear wheels via independent rear wheel motors.

Transport Width: 92″ (233.7 cm)

Weight: 3,131 lbs. (1,420 kg) (2WD), 3,241 lbs. (1,470 kg) (4WD)

Wheelbase: 60″ (152.4 cm)

Width of Cut: 100″ (254 cm)
