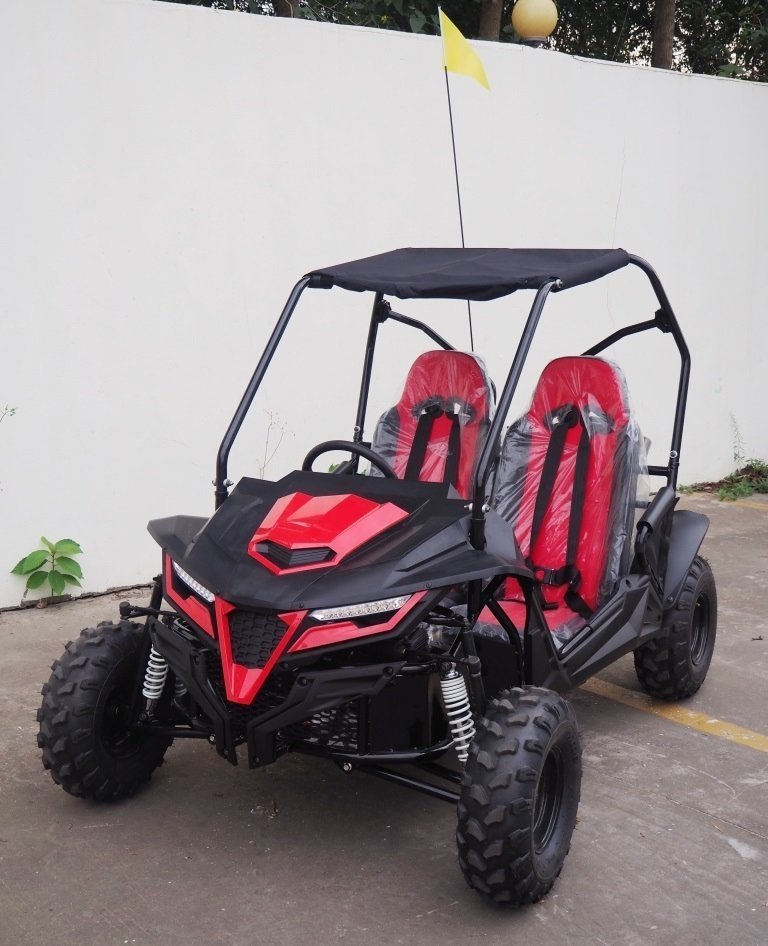

The TrailMaster Cheetah 8 is a little bit smaller in size comparing to the Cheetah 150. It targets from youth to adult up to 5’8” while comparing the Cheetah 150/150X up to 6”2!  The Cheetah 8 is equipped with a 208cc, 7.5 HP horizontal OHV Engine; Torque converter CVT transmission which allows this beast to takeoff with ease. Its top speed can reach up to 32M/H.  The manual choke allows this unit to start easy even under cold temperatures. A pull cord kill switch is another safety feature added to this unit.  Automatic CVT with reverse, hydraulic disk brake, 3-point automotive style retractable seatbelts, parking brake, fenders, canopy top and cargo rack are just a few of the many special features.  Add the dramatic body panels and the LED light package with flowing turn signals and this is one cool cat!
Key Features:

Adjustable driver seat: pedal to seat back adjustable from 32” to 39”, fits person up to 5’8”
Sporty stylish design
Articulating rear suspension equipped with anti-flip pull belts, much harder to roll over comparing to other rear solid axle machines
Youth/Adult size
Pull cord kill switch
4 point safety seat belt
Manual choke
LED headlight and turn signal
Electric start with pull start backup
Fully automatic with reverse, 7.5 HP air cooled engine
Individual sports seats • Bikini sunshade top
Rack and pinion steering wheel
Hydraulic disc brake
Max speed 32 m/h
Parking brake
Large rear utility rack

Specifications:

EPA certificated
Engine type: 4-stroke, single cylinder, air cooled, Horizontal OHV Engine
Displacement: 208cc, 7.5HP
Max HP: 7.5hp/3600rpm
Max torque: 8 lb ft/2800rpm
Bore x stroke: 2.76×2.13 inches
Max speed: 18-20 MPH
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Electric or Pull
Battery: 12V 10Ah
Carburetor brand: JF210N.9.1C
Engine oil: SAE 15W-40 General Information
Clutch: Automatic torque converter CVT with reverse
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension F / R: Double A-arm / swing-arm • Brake: Rear disc
Tires, F / R: 18X7-8 / 18X7-8 • Wheel: Steel
Fuel capacity: 1 gal
Weight, G.W. / N.W.: 485 / 400 lbs
Max load: 400 lbs Dimension Information
Wheelbase: 57 inches
OA L x W x H: 79x51x56.3 inches
Height to seat: 15.7 inches
Min ground clearance: 4 inches
Pedal to seat back dist: 32” to 38”
Packing size: 79X45X26 inches
