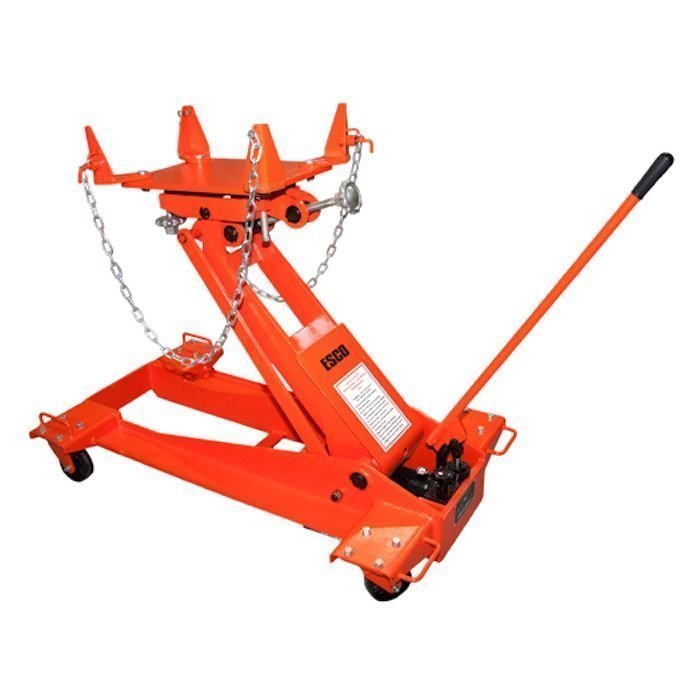

The Yellow Jackit 2.2 Ton (4,400 lbs.) Transmission Jack is designed with heavy duty lifting in mind. Designed with maximum strength steel and a hefty weight capacity of 2.2 Tons (4,400 lbs.). The units also come with swiveling casters to make it easier to roll across concrete garage floors; making it easier on the technician when removing/installing the transmission. This product is designed for Heavy Duty Truck, Commercial Truck, Bus, Agricultural, Construction equipment and machinery.

Features

• Hydraulic System is protected with safety overload system
• Wide chassis design provides maximum stability
• Fully adjustable universal saddle, brackets and chain sling
• Four 4″ swivel casters help move jack easily
• 360 degree rotatable pump handle for operation in any position
• Easy access to relief valve to lower the jack
• Sealed hydraulic unit prevents contamination

Specifications

• Lifting Capacity: 2.2 Ton (4,400 lbs.)
• Min. Height: 8 1/2″ (216 mm)
• Max. Height: 34″ (864 mm)
• Forward Tilt: 15 Degrees
• Rear Tilt: 30 Degrees
• Lift Tilt: 12 Degrees
• Right Tilt: 12 Degrees
• Head Width: 12″ – 18″ (305 mm – 457 mm)
• Head Length: 16″ – 20″ (406 mm – 508 mm)
• Width: 26″ (660 mm)
• Length: 43″ (1092 mm)
• Weight: 355 lbs. (161 kg)
