Brand

Zoom

Number of Channels

12

Product Dimensions

11.1″D x 17.5″W x 2.78″H

Item Weight

5.58 Pounds

Connectivity Technology

USB

About this item

12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity

14 -track Simultaneous recording, 12-track playback

5 powered headphone outputs, each with a customizable and savable mix

14 -in/4-out USB audio interface connectivity

Scene saving function, up to 9 scenes saved at a time

Product Description

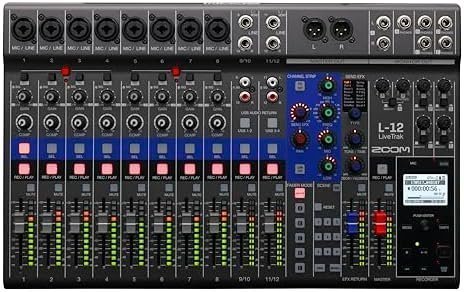

12-channel Digital Mixer with 24-bit/96kHz 12-track Recorder, 5 Monitor Outputs, 3-band EQ, 16 Built-in Effects, and 14-in/4-out USB Audio Interface – Mac/PC/iOS

12-channel digital mixer (8 mono/2 stereo)

14-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning-to-USB Camera Adapter is required for iOS)

12-track 24-bit/96kHz recording directly to an SD card

Record up to 48kHz to a computer and an SD card simultaneously

Create customizable, savable headphone mixes for up to 5 band members

Complete your entire project on the mixer, or transfer all 12 discrete tracks to your DAW for editing and mixing

8 combo jacks accommodate both XLR and 1/4″ connectors

8 great-sounding mic preamps with phantom power and +60dB of gain

Channels 1–2 offer hi-Z inputs for your electric guitar or bass

Channels 9/10 and 11/12 have TRS and RCA connectivity for keyboards and other audio devices

Each channel features a 3-band mid-parametric EQ and 16 built-in effects

Channels 1–8 include a dedicated compressor for controlling dynamics

Channels 3–8 have a -26dB pad for capturing loud sources

Clear 12-segment LED metering for keeping an eye on your levels

Save up to 9 scenes and recall your custom settings automatically

Record automatically when the master fader detects a certain dB level

Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time

Built-in slate mic for recording comments or talk back

Onboard metronome for keeping the band in sync
