Brand
Zoom

Number of Channels
12

Product Dimensions
11.1″D x 17.5″W x 2.78″H

Item Weight
5.58 Pounds

Connectivity Technology
USB

About this item

12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
14 -track Simultaneous recording, 12-track playback
5 powered headphone outputs, each with a customizable and savable mix
14 -in/4-out USB audio interface connectivity
Scene saving function, up to 9 scenes saved at a time
Product Description

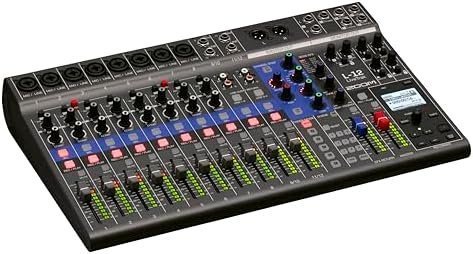

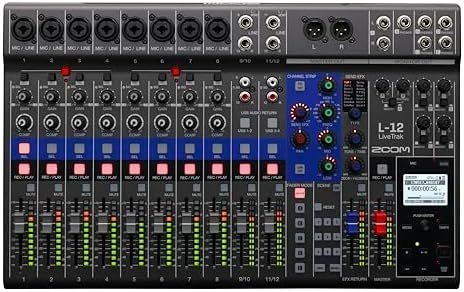

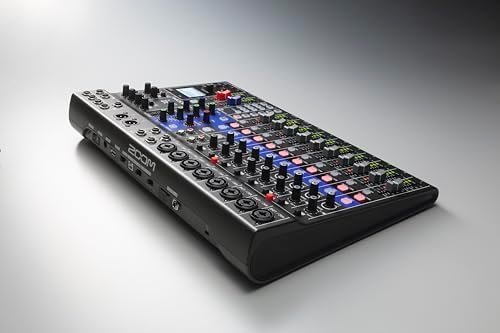

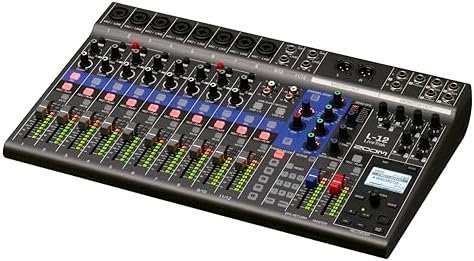

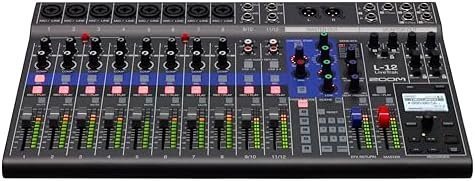

12-channel Digital Mixer with 24-bit/96kHz 12-track Recorder, 5 Monitor Outputs, 3-band EQ, 16 Built-in Effects, and 14-in/4-out USB Audio Interface – Mac/PC/iOS

12-channel digital mixer (8 mono/2 stereo)
14-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning-to-USB Camera Adapter is required for iOS)
12-track 24-bit/96kHz recording directly to an SD card
Record up to 48kHz to a computer and an SD card simultaneously
Create customizable, savable headphone mixes for up to 5 band members
Complete your entire project on the mixer, or transfer all 12 discrete tracks to your DAW for editing and mixing
8 combo jacks accommodate both XLR and 1/4″ connectors
8 great-sounding mic preamps with phantom power and +60dB of gain
Channels 1–2 offer hi-Z inputs for your electric guitar or bass
Channels 9/10 and 11/12 have TRS and RCA connectivity for keyboards and other audio devices
Each channel features a 3-band mid-parametric EQ and 16 built-in effects
Channels 1–8 include a dedicated compressor for controlling dynamics
Channels 3–8 have a -26dB pad for capturing loud sources
Clear 12-segment LED metering for keeping an eye on your levels
Save up to 9 scenes and recall your custom settings automatically
Record automatically when the master fader detects a certain dB level
Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time
Built-in slate mic for recording comments or talk back
Onboard metronome for keeping the band in sync
