Product Description

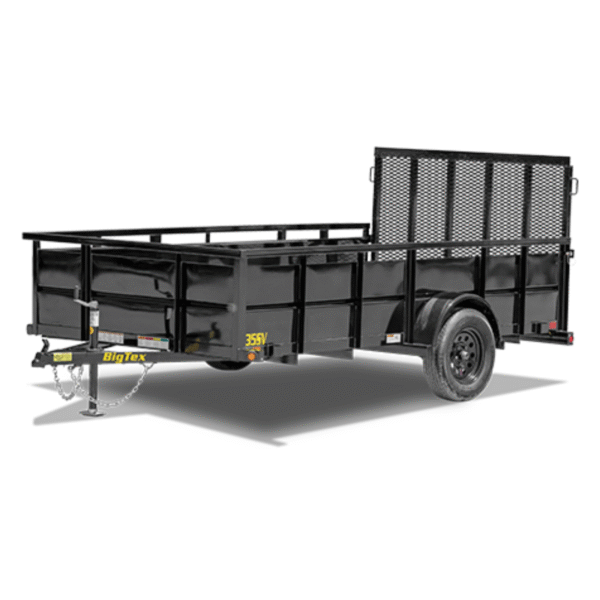

The 35SV is a single-axle utility/landscape trailer designed for hauling equipment, tools, and materials. Part of Big Tex’s Vanguard line, it is built for durability and ease of use, making it ideal for landscaping, small job sites, or general utility hauling.

Key features include:

• Pipe-top rail and higher sides for better cargo containment.

• Optional rear ramp-gate to load ATVs, side-by-sides, golf carts, and more.

• Treated pine floor and strong frame for job-site durability.

• Radial tires for smoother ride and long-lasting performance.

Specifications

Standard Features

• Axle: 3,500 lb premium cambered axle with quick-lubricating hubs

• Suspension: Multi-leaf slipper spring suspension

• Coupler: 2″ forged coupler (Demco EZ-Latch)

• Jack: 2,000 lb top-wind set-back jack

• Frame: 3″ x 2″ x 3/16″ angle steel frame; cross-members same

• Floor: Treated pine

• Sides: 28-1/2″ tall steel panels (16 gauge)

• Top Rail: 2″ x 2″ square tubing

• Tires: ST205/75 R-15 Load Range C radial tires

• Lighting: LED stop, tail, turn, and clearance lights

• Plug: 4-way flat trailer plug

• Finish: Professional paint finish

Optional Features

• Electric brakes with break-away kit

• Spare tire mount with spare tire

• Additional stake pockets and tie loops

• Rear ramp gate: 4′ or 5′ tall with coil spring assist

• Blackwood Pro rubber-infused floor

Model / Dimension Variants

• 35SV-10: GVWR 2,995 lbs; Empty weight ~1,100 lbs; Bed length 10′; Bed width 77″

• 35SV-12: GVWR 2,995 lbs; Empty weight ~1,290 lbs; Bed length 12′; Bed width 77″

• 35SV-14: GVWR 2,995 lbs; Empty weight ~1,480 lbs; Bed length 14′; Bed width 77″

Performance / Capacity

• GVWR: 2,995 lbs

• Cargo Capacity (Net Payload):

  • 12′ model: ~1,705 lbs

  • 14′ model: ~1,515 lbs

Key Selling Points

• Strong sidewalls and tube-top rail for heavy-duty use

• Single-axle design reduces maintenance

• Optional ramp gate for hauling small vehicles

• Customizable options for paint, flooring, and brakes

• Ideal for landscaping, construction, and general utility hauling
